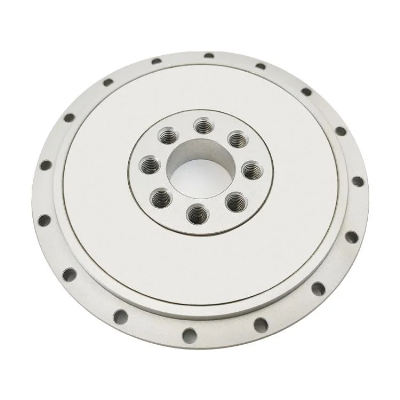

0-320Nm robot joint torque sensor We are a professional supplier for 6 axis force/torque sensors are matrix-decoupled, diameter from 40mm to 900mm, capacity 50 to 100000N, 0.5 to 10000Nm, non-linearity & hysteresis 0.5%, crosstalk 2%, overload 200%. 6X6 decoupled matrix is provided in the calibration sheet when delivered. The interface box can be used to provide signal conditioning and data acquisition. Amplifier can be embedded into some of the sensors at special request. Standard protection is IP65. Some of our models can be made to IP68 (30m underwater), and welcome your any customized designs.Any further questions ,pls contact me directly !Contactor:Reson Sun Capacity : 0-20Nm 0-30Nm 0-50Nm 0-100Nm 0-320Nm ........ Specification Rated Output2.0 mV / VZero Output±2%F.SNon-Linearity0.2% F.S.Hysteresis0.1% F.S.Repeatability0.1% F.S.Creep0.1% F.S/30minTemperature sensitivity drift0.1% F.S. / 10ºCZero temperature drift0.1% F.S. / 10ºCResponse frequency10KHzInput Impedance350±10ΩOutput impedance350±5ΩInsulation≥5000 MΩ/100VDCExcitation voltage5-15VDCOperation Temperature Range-20 ~ 80ºCSafe Overload150%F.SUltimate overload200% F.S.CableØ3×2mCable ultimate pull10kgWiringInput: Red(+) Black(-); Output: Green(+) White(-);MaterialAluminum alloy /Alloy steelTEDSOptionalCustom-madeWelcome /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
