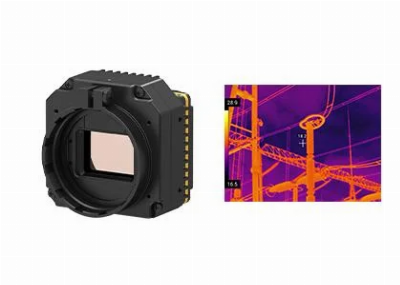

Uncooled LWIR Thermal Module, Infrared Surveillance Camera Integrated into Drones, UAV Payloads

Product DescriptionPLUG617R integrates the 640x512 IR thermal imaging sensor by Global Sensor Technology (GST).The PLUG617R is specially designed for the commercial unmanned aerial vehicle. It can overlook the fire through the thick smoke; quickly locate the trapped people, fire points and potential risks. It helps firefighters to formulate accurate fire-fighting plans. It can also patrol forests and grasslands to find high-temperature or flammable points, and prevent the loss of forest resources caused by fire.UAV equipped with PLUG617R thermal camera can also be used in other areas, such as enforcement and rescue, firefighting application, animal observation etc.Main Features- NETD≤40mk, High Sensitivity- Stable Performance- Easy Integration- Clear Image Quality & Details- Customizable Temperature Range- Strong Environmental AdaptabilityProduct Parameters  ModelPLUG617RIR Detector PerformanceResolution640x512Pixel Pitch17μmSpectral Range8~14μmNETD≤40mkImage ProcessingFrame Rate25Hz/30HzStart-up Time≤15sAnalog VideoPAL/NTSCDigital VideoRAW/YUV/BT656/LVDS; Support UVC Video Transmission ProtocolDimming ModeLinear/Histogram/MixedDigital Zoom1~8X Continual Zoom, Step Size 1/8 (YUV Output)Image DisplayBlack Hot/White Hot/Pseudo ColorImage DirectionHorizontally/Vertically/Diagonally FlipImage AlgorithmNUC/AGC/IDEElectrical SpecificationStandard External Interface50pin_HRSCommunication ModeRS232-TTL, 115200bpsSupply Voltage4~6VTypical Power Consumption
