Uncooled Thermal Imaging Camera for Drone Search & Rescue

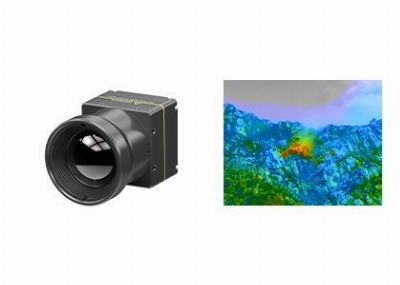

Product DescriptionCOIN612R is an affordable infrared camera with thermal imaging system designed for commercial unmanned air vehicles (drones/UAV). It is small in size and light in weight, which can be easily integrated into light UAVs to realize all-weather monitoring of the air and ground conditions.The COIN612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It features in sharp and crisp image presentation, compact size and low cost. This thermal camera module also has an optional thermographic function with measurement range from -20ºC~550 ºC for industrial temperature measurement.Main Features- Mini Size- Light Weight- Typical NETD≤40mk- High Quality Image- Low Power Consumption- Rapid Development & Integration  Product Parameters  ModelCOIN612/RIR Detector PerformanceSensitive MaterialVanadium Oxide Resolution640×512Pixel Pitch12μmSpectral Range8μm ~14μmTypical NETD≤40mKImage ProcessingFrame Rate25Hz/30HzStart-up Time5sAnalog VideoPAL/NTSCDigital VideoRAW/YUV/BT656Image AlgorithmNon-uniformity Correction (NUC)3D Noise Reduction (3DNR)2D Noise Reduction (DNS)Dynamic Range Compression (DRC)Edge Enhancement (EE)Digital Zoom1~8X Continual Zoom, Step Size 1/8 (YUV Output)Image DisplayBlack Hot/White Hot/Pseudo ColorPC SoftwareICC SoftwareModule Control & Video DisplayElectrical SpecificationsStandard External Interface50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male)USB Expansion BoardType-CCommunication InterfaceTTL-232/USB2.0Digital Video InterfaceCMOS8/CMOS16/LVDS/USB2.0Supply Voltage4~5.5VTypical Power Consumption0.9WTemperature MeasurementOperating Temperature Range-10ºC~+50ºCTemperature Measurement Range-20ºC~150ºC, 0ºC~550ºC (Support Expansion & Customization)Temperature Measurement AccuracyGreater of ±3ºC or ±3%Regional Temperature MeasurementSupport Maximum, Minimum and Average Value of the Output Regional TemperatureSDKWindows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to TemperaturePhysical CharacteristicsSize (mm)25.4×25.4×27.4 (With 9.1mm Lens)25.4×25.4×39.5 (With 13mm Lens)25.4×25.4×38.3 (With 19mm Lens)Weight27g±2g (With 9.1mm Lens)40g±2g (With 13mm Lens)41g±2g (With 19mm Lens)Environmental AdaptabilityOperation Temperature-40°C ~ +70°CStorage Temperature-45°C ~ +85°CHumidity5%~95%, non-condensingVibrationRandom Vibration 5.35grms, 3 AxisShock Half-sine Wave, 40g/11ms, 3 Axis 6 DirectionCertificateROHS2.0/REACHOpticsOptional LensFixed Focus Athermal: 9.1mm/13mm/19mmProtection LevelIP67 Rating (Front Surface)Industrial ApplicationsThe COIN612R thermal camera for UAV can be used for electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, disaster relief & rescue, forest fire prevention, urban safety etc.Our Advantages Customer PraisesCustomers' praises are the affirmation of our profession and service.  Company Profile Wuhan Global Sensor Technology Co., Ltd  is looking forward to be your reliable partner!Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.  Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability. GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.    Certifications  FAQ1.What is infrared thermal imaging?Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.2.What is thermography?Thermography is a non-invasive diagnostic method, based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualised in the form of a temperature distribution map. The infrared thermal image can be used to determine; structural defects, electrical faults, mechanical faults, physiological
