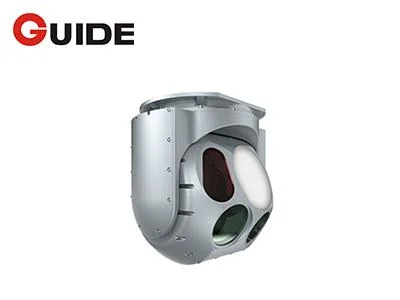

GDES-450H55 Airborne 4-axis Multi-band Reconnaissance Pod

Product DescriptionThe GDES-450H55 airborne 4-axis multi-band reconnaissance pod adopts a stable spherical platform with a diameter of φ450mm and weighs less than 55kg.  Based on an extensive experience in advanced electro optics and infrared systems (EO/IR), the GDES-450H55 pod is equipped with 1080P visible light camera, large array 1280 cooled thermal camera, laser rangefinder and other optical devices (laser indication, laser illumination etc.). Automatic and suspected target warning, target location, multi-target memory functions can be used to provide target information for the aircraft fire control system.  Main Features- High stability accuracy up to 0.03mrad- Core infrared detector with self-developed intellectual property right- Support real-time output of thermal image and visible image- With inertial image stabilization, locking, scanning functions - With airborne information for target positioning functionProduct ParametersModelGDES-450H55Infrared CameraDetector                               Cooled MWIR Focal Plane ArrayResolution                            1280×1024Pixel Pitch                              12μmFOV                                      0.92°×0.73°~35.49×28.72°Zoom Lens  15~600mm, Continuous ZoomVisual CameraResolution                             1920×1080Focal Length                          10~600mm, Continuous ZoomFOV                                       1.01°×0.57°~38.78°×22.4°LaserWavelength                                          1.064μmMaximum Range                                   ≥20kmIrradiation Distance                               ≥12km  LRF Accuracy                                         ±5mIllumination Distance                             ≥500mServo SystemMotion Range                                        360° Continuous Azimuth, -110~+20° ElevationStabilization Accuracy                             ≤0.02mrad(RMS)Electrical InterfaceWorking Voltage                                  DC28V (Support 18-36V Input)Video Port                                               EthernetPhysical CharacteristicsWeight                                                    ≤55kgDimension                                               ≤450mmx580mm (OD×H)Our Advantages  Company Profile Wuhan Global Sensor Technology Co., Ltd  is looking forward to be your reliable partner!Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.  Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability. GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.    Certifications  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
