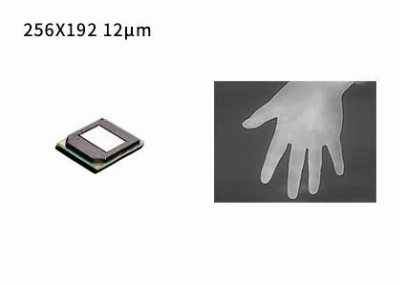

256x192 Wafer Level Packing Uncooled Thermal Detector for Infrared Cameras

Product DescriptionGST212W is one of the Wafer Level Packing (WLP) uncooled infrared detectors developed by Global Sensor Technology (GST). Its resolution is 256x192 with pixel size at 12 μm. Wafer level packaging (WLP) is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared detector.The GST212W detector is specially developed for small size, light weight & low price (SWaP), which has achieved high volume production with annual output up to 1,000,000 pieces. Due to its lightweight and low price, GST212W can be widely used in many new emerging markets like consumer electronics. Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It's easier for WLP detectors developed by GST to be integrated into more terminal products and greatly reduces the cost for customers.Main Features:- Small Size- Light Weight- Low Cost- Low Power Consumption- Wide ApplicationProduct Parameters  ModelGST212WMaterialVOxResolution256X192Pixel Pitch12μmSpectral Range8-14μmNETD
