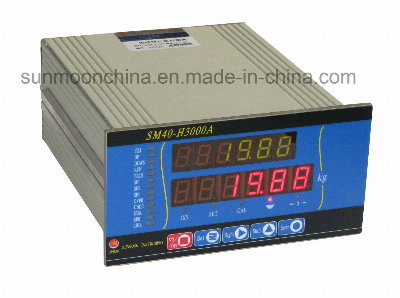

Industrial Packing Scale Controller

Scope Of ApplicationSuitable for many industrial applications such as package and batching.Function Characteristics1. Metal shell2. Electromagnetic interference resistance, low electromagnetic leakage radiation, resistance to external impact, corrosion resistance3. Waterproof, dustproof, easy to clean4. Peripheral circuit protection, fault elimination of automatic recovery working state5. High precision and steady6. Multi-drop or long distance communication is possible by using RS4857. Communication protocol can be selected8. Has silo or no, cement packaging mode9. Buffer silo position of material detection function10. With interface test function11. automatic coarse /medium / fine batching control12. Dual color high brightness digital tube display13. Dual display showing both gross and net weight at the same time14. Higher A/D conversion rate up to 200 times/sec15. Provides complete material batching control function16. Free fall compensation function is Provided17. Dribble batch control is available, re-batch is possible if the actual batch quantity is lower than the point value18. Separated comparison inhibit time for coarse and fine batching19. Sensor sampling channel after strict power supply, amplifier, sampling precision digital calibration between instruments, good interchangeabilityTechnical Specification1. Non-linearity:0.01% of F.S.D2. Power supplyVoltage: AC 220V±30%(Internal installation EMI filter)Frequency: 50/60HzMax.Power: 15W3. DisplayDisplay mode: Double row 6 bits LEDState display: 4 alarm led, 5 weight led, 1 state led, 1 material position ledKeyboards: 5 touch switches under PVC4. Temperature and humidityService temperature:-20~+50ºCStorage temperature:-30~+60ºCRelative humidity: max.90%RH5. Structure form: panel installation6. InterfaceAnalog input: 1, 0~30mVControl input: 9,Opto-coupler isolated Control output: 12, Open Collector, load ability DC 55V/0.5ACommunication: RS4857. Weight:1kg8. Cut size: 152mm*76mm(WxH)  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
