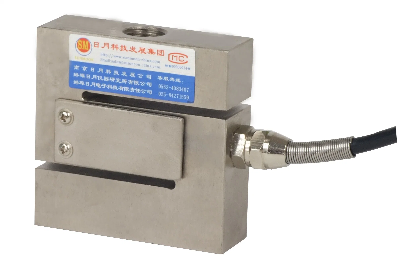

Stype Load Cell

Description:SM6T high precision weighing and tension pressure sensor adopts BH series foil strain gauge produced by American raw materials and BEAN company's proprietary processing technology -- electrical conversion element. Elastomer structure adopts internationally recognized s-type structure with high precision and high stability, plus full sealing measures, so the performance is stable and reliable. The average time without failure (MTBF) in normal use is more than 20000 hours, and the life is 10~12 years. Compared with similar domestic products have higher quality/price ratio. At present, it has been successfully widely used in high-precision electronic scales, hopper scales, packing weighing equipment and other dynamic and static measurement and control systems as a primary instrument for force-electric conversion. characteristic:Double hole S-type structure of Sino alloy steelLent works in harsh environments.Lent The performance is stable for a long time.Linear dynamic response is good, and the measurement accuracy is high.Dimensions :Circuit Diagram:Red:       +input    Blue:     -input    White:    -output     Yellow:   +output             Specification:Type  Technical parametersNominal load range500kg Power supply10~12 VDCZero balance 1.0±% of rated output Analog output2.0±0.01mV/VInput resistance(Rlc)400±20Ω(ohms)Output resistance(Ro)350±5Ω(ohms)Insulation resistance ≥5000 MΩ(Mege-Ohms) Class precision0.02%FS Effect of temperature0.02%FS/10ºC Operating temperature-40~+85ºC Safe Load Limit200% FS  Safety margin against yielding300% FS Safety margin against breakage500% FSMaterial materialHigh performance alloy steel  Protection typeIP67      /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
