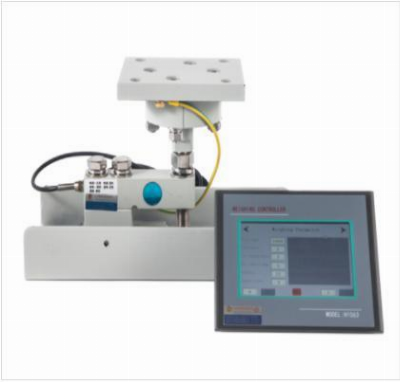

Description:Sm40-h1063 weighing display controller is an intelligent weighing instrument with a microprocessor, it not only weighs quickly and accurately, easy to operate, low voltage DC power supply, high brightness liquid crystal display; Moreover, it has the characteristics of low power consumption, stable performance and compact structure. At present, it has been widely used in the tower weighing system of aquaculture industry.Features:Can be used for all resistance strain type force measuring and weighing sensors;7 inch color liquid crystal display, real-time indicator gross weight signal;Automatic zero tracking;Using high precision ∑-△ analog-to-digital conversion, meet the dynamic and static weighing, sampling speed of about 100 times per second;Self-diagnosis function when switching on the power supply;Provide digital filtering for different use environments;Wide voltage work (24VDC±20%);Automatic feed statistics, automatic discharge statistics functionCustomization: CAP./SIZEL1L3L4L5HBΦDΦSt/mm1024080100125195135185020,3024080100125225135187640,503401241241802611602182Ib/inches(conversion of above dimensions ) 22046.2394.4931.539.3749.2176.7753.157.0919.6944092.45~66138.6894.4931.539.3749.2188.5853.157.0929.9288184.9~110231.1133.8648.8248.8270.87102.7662.998.2732.28Circuit Diagram:Red: +input Blue: -input White: -output Yellow: +output ItemParameterC3Unit Rated load(Emax):10~50t Maximal numbers of load cell cerification.Intrevals (NlC):3000d Maximal numbers of load cell cerification.Intrevals (NIC):0.01% of ratedload Rated output(Cn):2.0±0.1%mV/V *Combined error :0.05±% of rated output Temperature effect on sensitivity (Tkc):0.02±% of rated output/ºC Temperature effect on zero balance (Tk0):0.02±% of rated output/ºC Zero balance :1.0 ±% of rated output Input resistance(Rlc):775±20Ω(ohms) Output resistance(Ro):700±5Ω(ohms) Insulation resistance :≥5000MΩ(Mege-Ohms) Safe overload :150±% of rated capability Ultimate overload :200±% of rated capability Operating temperature range :-30~+70ºC Recommend excitation5~12V(DC or AC) Maximum excitation :15V(DC or AC) Material of elastomer :Alloy steel /Stainless steel Protection class IP67 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
