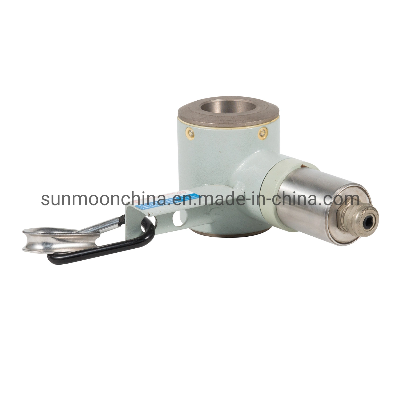

Special Purpose for Pumping Wellstwo-Wire Fixed Load Sensor.

Description:Wired load sensor, is a load sensor with high anti-interference performance. The product adopts standard current 4-20mA signal output and full sealing design, can work in high temperature, high cold, high humidity, high radiation and other harsh environment, is widely used in the pump work diagram measurement system.Characteristics :After more than ten years of use in oil production plants, it has been continuously improved. Fully sealed waterproof design to meet all-weather use; Easy and safe operation; Standard 4-20mA two-wire output Power supply is indiscriminate between positive and negative poles Dimensions   (In mm. 1mm=0.03937 inches)Specification:    Type   Technical parametersNominal load range0~150 KNoutput4-20mAClass precision0.5%FSInsulation Resistance≥5000MΩZero Balance≤0.1%FS Power supply15~24 VDCEffect of temperature0.5%FS/10ºCtemperature compensation-10~65ºC Operating temperature-40~+85ºC Safe Load Limit150% FS Safety margin against yielding300% FSMaterial materialHigh performance alloy steel or (chromium ratio>15% stainless steel) Protection typeIP68  (IEC60529)    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
