Dg-Th Air Humidity, Temperature and Dew Point Sensor, RS485, Modbus

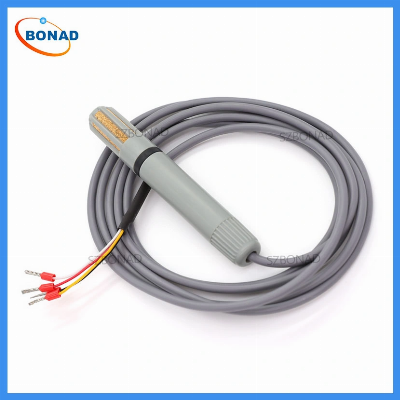

DG-TH Air Humidity, Temperature and Dew Point Sensor, RS485, Modbus1. Introduction :DG-TH is an air humidity, temperature and dew point sensor with RS485 modbus interface. The sensing elements are located on a PCB in the tip of the sensor. The acquisition circuit is completely over-moulded. Temperature and humidity sesor is based on a precision SENSIRION sensor. Each sensor is individually factory-calibrated.With dimensions of only 108mm x 16mm, the sensor can easily be fitted into many standard radiation shields and field application.2. Advantages :1. Air humidity and temperature sensor with dew point ;2. RS485 modbus-RTU interface ;3. Small size with high accuracy with excellent stability ;4. Cleanable 10um copper sintering filter cap ;5. Wall mounting or pipe flange insertion installation ;6. Reverse power protection and Built-in TVS/ESD protection ;7. Excellent price-performance ratio 3. SpecificationHumidityRange:0-100%, Resolution:0.01%, Accuracy:+/-1.8% RH(SENSIRION? SHT25) Range:0-100%, Resolution:0.01%, Accuracy:+/-2% RH(SENSIRION? SHT21)Range:0-100%, Resolution:0.01%, Accuracy:+/-3% RH(SENSIRION? SHT20)TemperatureRange:-40~80ºC, Resolution:0.01ºC, Accuracy: +/-0.2ºC(SENSIRION? SHT25) Range:-40~80ºC, Resolution:0.01ºC, Accuracy: +/-0.3ºC(SENSIRION? SHT21)Range:-40~80ºC, Resolution:0.01ºC, Accuracy: +/-0.3ºC(SENSIRION? SHT20)4. Parameters :ParametersCodeCommentsCode 1:Product SeriesDigiTHDigiTH sensorCode 2:Measuring ParametersAAir humidity, temperature and dew pointCode 3:Temperature AccuracyA BC-40-80ºC, +/-0.3ºC (SENSIRION? SHT20) -40-80ºC, +/-0.3ºC (SENSIRION? SHT21)-40-80ºC, +/-0.2ºC (SENSIRION? SHT25)Code 4:Humidity AccuracyA BC0-100%RH, +/-3%? (SENSIRION? SHT20) 0-100%RH, +/-2%? (SENSIRION? SHT21)0-100%RH, +/-1.8% ?(SENSIRION? SHT25)Code 5:Power SupplyA3.6-24V DCCode 6: Output InterfaceA CRS485, Modbus-RTU CustomizeCode 7: Cable Length002 XXX2 meters Customize, XXX is required cable length(Unit: meter)Ordering Code Example:DG-TH sensor with Air humidity, temperature and dew point, Temperature Accuracy -40-80ºC, +/-0.3ºC, Humidity Accuracy 0-100%RH, +/-3%, Power Supply 3.6-24V DC, Output Interface RS485 Modbus-RTU, Cable Length 5 meters. 5. Product  Pictures :Company Profile :Certifications :Factory Introduction :Plant Warehouse :Cooperative Customers & Brands:Customer Reviews :Product  Packaging :  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
