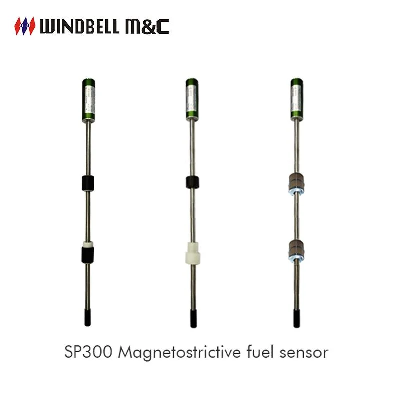

Product DescriptionWhat are high precision gas station fuel tank level meter use for?Gas station fuel tank level meter are used for monitoring fuel liquid level, volume and temperature inside fuel storage tanks. It is widely used at gas station and skid-mounted fueling site. It also can be used at chemical factory, pharmacy industry and waste water tanks.SP300 Magnetostrictive sensor is mainly composed of probe head, temperature sensors, protection steel pipe, magnetostrictive waveguide wire and floaters with magnet inside. Insert probe into underground tank, floaters float on the liquid surface, and slides up and down on rod according to the changes of liquid level. Processing measured data of product level, water level, density values (option), and average temperature of five-points, then transmit these data to smart console by digital communication port.Product Advantage±0.5mm accuracyRS485 communication protocol3-in-1 measurement, detect fuel height, fuel temperature and water height at the same time.4 wires cableIP68 protection gradeIntrinsically safe gradeATEX, EAC, CQST, SIL approvedLength customized productionApplied in Gasoline, Kerosene, Diesel, Ethanol gasoline, Methanol gasoline, Approved light oilProduct ParametersPower supplyDC12VPrecision ±0.5mmRepeatability ±0.1mmResolution of product level0.0069mmResolution of temperature0.0078ºCResolution of water level0.0069mmTemperature range -40 to 85ºC(-40 to 185ºF)Points of temperature measured5Maximum communication distance1200mCommunication RS485Intrinsic safety parameter Power port: Ui = 15V DC, Ii= 400mA, Pi = 1.5W, Ci = 3.63μF, Li = 0mH;Signal port: Ui = 7.14V DC, Ii= 147mA, Pi = 260mW, Ci = 32.6μF, Li = 0mH;Associated apparatusWB-GSB03 safety barrierExplosion proof gradeEx ia IIA T4 Ga, II 1G Ex ia IIA T4 GaProtection gradeIP68Applicable mediumGasoline, kerosene, diesel, Ethanol gasoline, Methanol gasoline, Approved light oilDefinition of wiresBlue Power +Brown RS485A White RS485B Black Power -Communication address 6 digits, see the"Manufacturing code"or S/N code on probe nameplate, this is also Probe ID in communication with console and FMSApplicationRelated Products Our Advantages /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
