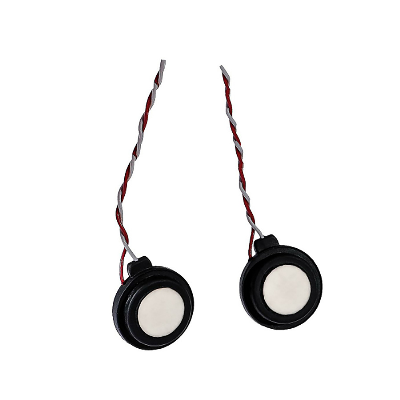

500kHz Measuring Ultrasonic Transducer Gas Meter Sensor Made of Piezoelectric Ceramic

Product Description500KHz piezoelectric ultrasonic transducer is specially used in the gas flowmeters to measure the gas flow. And this type can detect a range of 1mm-60mm. With high precision and good sensitivity, it can detect the gas flow in the gas flow meters precisely. It can pass the water vapor test as well.    Product ParametersNameUltrasonic sensorFrequency455KHz±10%Recommended range1mm~60mmMinimum impedance290.5Ω±20%Capacitance311.01pF±20%@1KHzSensitivityVpp:400mV~650mVWorking pressure≤50KPaOperating Temperature:'-40ºC~+80ºCMaterial:CeramicRelative ProductsCompany Profile CertificationsPackaging & ShippingFAQ1. Are you a factory or only a company?We have a factory to produce motor valves for gas meters, motor pipe valves for flow meter, and gas safety products. But we have extensive experience in the gas industry and can also purchase other products for customers   2. How about the shipping cost?  The quote is based on FOB, but other ways can be also considered   3. Can you customize the product here?  Yes. We support customization and can provide ODM&OEM   4. How about sample time? What is the payment?  Sample time 3-5 days after proof is confirmed and your payment is received. At the start of cooperation, we prefer T/T in advance or L/C/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
