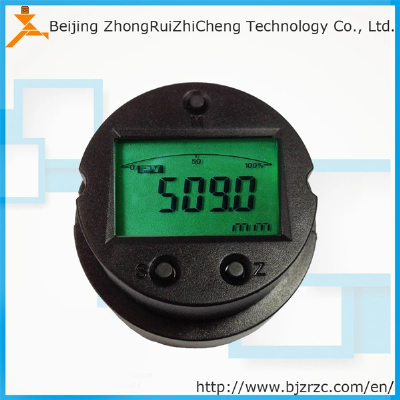

H509 HART 4-20mA Capacitance Level Meter APPLICATION Used for capacitance measurement SPECIFICATIONS Power supply: 12-32VDC Output: 4~20mA with HART (2-wire) Capacitance measurement range: 40PF ~ 2500PF Resolution: 0.01PF Operating temperature: -20°C ~ +70°C(with LCD) -40°C ~ +85°C(without LCD) Dimension: diameter Φ= 62 mm Mounting hole pitch D=55 mmFEATURES 1,High-voltage isolation: As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit. 2,Exceptional stability: Unique direct digital frequency synthesis (DDS) technology ensures exceptional stability and large range turndown. 3,Strong capability for anti-disturbance: Leading military-grade hardware and software anti-disturbance technology, over-voltage protection, surge current, electrostatic shock and lightning protection. 4,Multiple field adjust functions: Range Values, PV Unit, Damp, Transfer Function(Linear/Square root ), Zero Trim, Lower Sensor Trim and Upper Sensor Trim and Data Restore. 5,Flexible linearity and temperature compensation: The number of points for compensating temperature and pressure can be changed on demand. 6, 360o rotation LCD display 7, Multiple variables shown on the LCD: More than one variable displayed on the LCD with backlight for dark environment. 8,Data backup and restore 9,Easy to install and reliable with unique design Sensor connection: Local Adjustment Operation Code ListBeijing ZhongRuiZhiCheng Technology Co., Ltd. A professional engineering team with 15 Years HART/5 years Profibus R&D experiences 80% Market share in China Mainland market for HART transmitters More than 1000k Units shipped per year One-stop Solution for various HART/Profibus transmitters Quick response in goods supply and post-sales support Globally distributed customers including China Mainland, Korea, India, America, Europe, etc FAQ: 1,Customer: i want buy the samples to test, it is ok? Helen: of course, not free sample, but when the next order, we will return the samples money to your. 2,Customer: when will you do the shippment after my payment ? Helen: we have the in stock, when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/FEDEX,etc) 3,Customer: How to pay? Helen: the Western union, Paypal, person account, TT ,and so on. Samples samll quantity are avaliable at any time Welcome to contact us!/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
