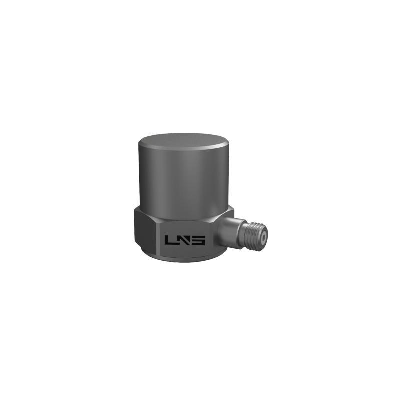

Compact Accelerometer Industrial Impact Test Acceleration Sensor

Features1. More integrated micro and small circuits2. Small size, light weight, more suitable for small structure measurement3. All series use memory alloy fasteners, shear structure, stable and reliable4. A variety of output and installation forms, a variety of ranges are availableSpecificationsTop cable outModel AS 01A01AS 02A01AS 03A02AS 05A06AS 06A14AS 07A01AS 09A01AS 10A01Sensitivity (±5%,mV/g)5(±10%)10(±10%)20501002005001000 Measure range(g peak)±1000±500±250±100±50±25±10±5Frequency range±5% (Hz)1-10k1-10k1-10k1-10k1-10k1-6k1-5k0.06-2k±10% (Hz)0.5-12k0.5-12k0.5-12k0.5-12k0.5-12k0.5-8k0.5-6k0.04-3kBroadband resolution(g rms)0.0020.0010.00050.00020.00010.000050.000020.00001Resonant frequency(kHz)≥90≥65≥60≥44≥37≥26≥17≥13Temp. range(ºC)-40~120-40~120-40~120-40~120-40~120-40~120-40~120-40~120 Installed insulation resistance(Ω)No ≥1×108Net weight(g)64.44.598.7153060Lateral cable outModel AS 01B01AS 02B01AS 03B03AS `05B06AS 06B14AS 07B01AS 09B01AS 10B01Sensitivity(±5%,mV/g)5(±10%)10(±10%)20501002005001000Measure range(g peak)±1000±500±250±100±50±25±10±5Frequency range±5% (Hz)1-10k1-10k1-10k1-10k1-10k1-6k1-5k0.06-2k±10% (Hz)0.5-12k0.5-12k0.5-12k0.5-12k0.5-12k0.5-8k0.5-6k0.04-3kBroadband resolution(g rms)0.0020.0010.00050.00020.00010.000050.000020.00001Resonant frequency(kHz)≥90≥65≥60≥44≥37≥26≥17≥13Temp. range(ºC)-40~120-40~120-40~120-40~120-40~120-40~120-40~120-40~120Installed insulation resistance(Ω)No ≥1×108Net weight(g)4.44.44.598.7153060   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
