Acceleration Sensor

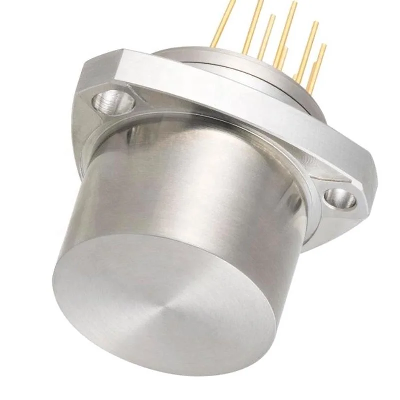

HQA-T Series High Temperature Quartz-Flexible Accelerometeris a single-axis torque reaction type accelerometer to detect the external acceleration signal by detecting quality and then demodulated and amplified by the servo circuit, and finally output current signal proportional to the acceleration signal.It is widely used for high accuracy navigation system of aerospace and oil drilling inclinometer or geological exploration system.High precision quartz flexible accelerometerHQA-T seriesProducts features:a. High temperature resistanceb. Vibration and shock resistancec. Small volume and light qualityd. Wide voltage supply, low power consumptione. Analogue signal outputf. Flange mounted or round embedded installation Product Parameters1.Key performance dataElectrical performanceWorking voltage±(10~18)VDCInsulation resistance50MΩ,@50VDCPower consumption
