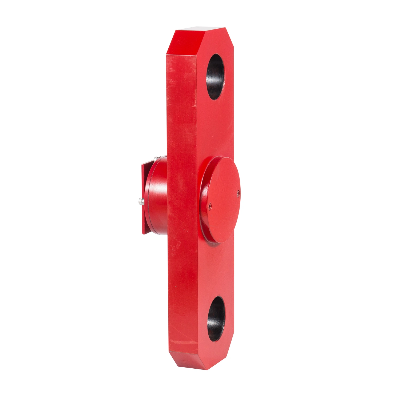

Anti-Explosion Sensor Load Cell 10-500kg Weighing Sensor

Description: The sensor is made of military alloy steel and has an excellent anti-overload capability of 300% F.S. It is the first in the industry. Sensing unit using the United States      The raw materials and the proprietary processing technology of the American company BEAN are produced, and the signal processing units are individually packaged. Unique anti-electromagnetic      Radiation interference processing technology, leading 9-36VDC extremely wide power supply circuit design, make the signal of the sensor not stableDistortion is guaranteed. The appearance of the use of advanced electrostatic spraying technology, anti-scratch collision ability. Sealing protection classMeets IP67 for use in extremely harsh electromagnetic environments.Execution standard:  GB/T 7551-2008 Certificate(eqv OIML R60)Sealed to IEC 529:Protection grade:IP66.Enclusure is immersed in water in its service position for 30min.Lowest point of enclosure less than 850mm tall=1000mm below surface of water.Highset point of enclosure more than 850mm tall=150mm below surface of water. ItemParameterC3Unit Rated load(Emax):15t Output :                 2.0mV/V Maximal numbers of load cell cerification.Intrevals (NlC):                 3000d  Maximal numbers of load cell cerification.Intrevals (NIC):0.01% of ratedload  Rated output(Cn):2.0±0.1%mV/V *Combined error :0.05±% of rated output Temperature effect on sensitivity (Tkc):0.02±% of rated output/ºC  Temperature effect on zero balance (Tk0):0.02±% of rated output/ºC  Zero balance :1.0 ±% of rated output Input resistance(Rlc):380±10Ω(ohms) Output resistance(Ro):350±2Ω(ohms) Insulation resistance :≥5000MΩ(Mege-Ohms) Safe overload :120±% of rated capability Ultimate overload :150±% of rated capability Operating temperature range :-40~+85ºC Recommend excitation13~36V(DC or AC) Maximum excitation :24V(DC or AC) Material of elastomer :Alloy steel /Stainless steel  Protection class IP67   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
