Stainless Steel Beading Beam Weighing Load Cell Force Sensor

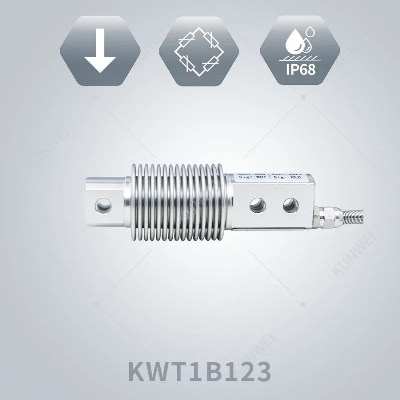

Stainless Steel Beading Beam Weighing Load Cell Force SensorProduct DescriptionThe KWT1B123 load cell is developed based on strain technology, and the rated capacity is from 5kg to 500kg.Usually used for platform scales or belt scales, combined with weighing modules can also be used for tank weighing. Metal bellows are used to protect the internal strain gauges and other electronic components of the sensor from moisture.Made of stainless steel, the surface of the elastomer body is electrolytically polished, and the metal bellows is sealed.It has good yaw loading and reverse loading ability.    ParameterUnitModelKWT1B123Rangekg5,10, 20, 50,100, 200, 500Transverse Load%FS100Lengthmm123SensitivitymV/V2.0±1%Repeatability%FS≤±0.017linearity%FS≤±0.017Hysteresis%FS≤±0.017Creep%FS/30min≤±0.017Bridge ResistanceΩ350±5Output ResistanceΩ350±5Insulation ResistanceMΩ/100VDC≥5000Power VoltageVDC5~12Temperature CompensationºC-10~40Working TemperatureºC-20~70Safety Overload%FS150Limited Overload%FS200Cable Sizemm3000Material Stainless SteelProtection Level IP68(Customization Acceptable)How to choose a proper sensor?Items   Measuring ItemsF&T of 3 DirectionsF or T of 3 DirectionsF or T of 1 DirectionNo. of Outputs631Point of FNot FixedFixedFixedDirection of FNot FixedNot FixedFixedMeasuring AccuracyHighHigh or MediumHigh or MediumBudgetHighMediumLowRecommendation6 Axis F&T Sensor3 Axis F/T Sensor1 Axis F/T SensorNote:F stands for force,T stands for torque. FAQ 1.How to place an order ?Just provide us your application&requirement and we`ll help you confirm all the details.2.What is lead time? 3-5 working days if we have in stock;7-30 working days for bulk order.3. What is the MOQ?1 pc for testing is available for all types. 4.Can you provide customized product?Of course and we can provide whole set solutions for you.5.What is after-sale service?Our R&D team will solve all your problems all the way since you get our product.   Stainless Steel Beading Beam Weighing Load Cell Force SensorStainless Steel Beading Beam Weighing Load Cell Force SensorStainless Steel Beading Beam Weighing Load Cell Force SensorCompany Profile Our Advantages Application Certifications Partnership Packaging & Shipping Stainless Steel Beading Beam Weighing Load Cell Force SensorStainless Steel Beading Beam Weighing Load Cell Force SensorStainless Steel Beading Beam Weighing Load Cell Force Sensor/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
