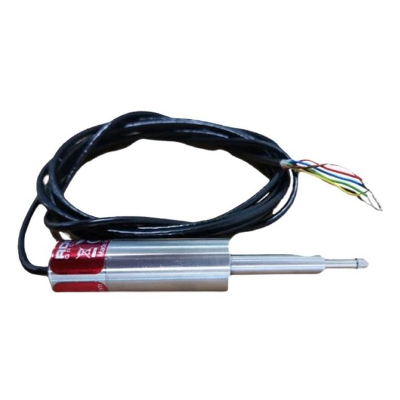

Rdp Dcth200AG Weighing Sensor Displacement Sensor Lvdt Displacement Sensor

RDP DCTH200AG Weighing sensor Displacement sensor lvdt displacement sensorBritish RDP weighing sensor Displacement sensor LVDT magnetostrictive type force weighing pressure torque sensor signal regulator. With years of experience in sensors, RDP Group has developed and produced a full range of displacement sensors, force, weight, pressure, torque sensors and related electronic driving equipment. LVDT displacement sensor and force sensor are widely used in automobile, railway, steel, aerospace and other industries by virtue of their excellent performance.DCTH100AG to DCTH400AG Wood end (axial) outlet cableD1 = 20.6 mm D2 = 8.0 mm L2 = 36 mm D3 = 4.0mm X is equal to the center of the rangeRDP DCTH200AG Weighing sensor Displacement sensor lvdt displacement sensortyperangeLinear error (%FS)Large sizeX(nominal)Gross weightThe spring force at XRebound rateOvershoot inwardOutward overshootDCTH100AG±2.5millimeter±0.5/±0.25/±0.164millimeter12millimeter83g1.0N0.9N/cm2.2millimeter1.3millimeterDCTH200AG±5millimeter±0.5/±0.25/±0.164millimeter13millimeter83g1.0N0.8N/cm0.3millimeter1.3millimeterDCTH300AG±7.5millimeter±0.5/±0.25/±0.164millimeter18millimeter83g1.5N0.6N/cm1.4millimeter1.3millimeterDCTH400AG±10millimeter±0.5/±0.2564millimeter22millimeter83g1.8N0.8N/cm1.3millimeter1.3millimeterDCTH500A±12.5millimeter±0.5/±0.25/±0.1182millimeter38millimeter227g1.3N0.2N/cm1.0millimeter13millimeterDCTH1000A±25millimeter±0.5/±0.25/±0.1210millimeter63millimeter284g2.0N0.3N/cm3.0millimeter10millimeterDCTH2000A±50millimeter±0.5/±0.25/±0.1324millimeter75millimeter398g1.8N0.2N/cm8millimeter14millimeterDCTH3000A±75millimeter±0.5/±0.25/±0.1436millimeter114millimeter511g6.0N0.4N/cm15millimeter15millimeterPower supply voltage (double)+12V to +20V 30mAAnalog output bandwidth200 hzSupply voltage (single, must float)24V to 40V 30mAOutput impedance2ΩChange the quantity to change the supply5 millivolts per voltLinear error (standard)±0.5%FSOutput 10V to 10V(+ 0%-5%)Linear error "Optional for some models)±0.25%FSOutput 2+5V(+0%-5%)Linear error This model is optional±0.1%FSOutput ripple30mV(Peak to peak)Linear error This model is optional Temperature coefficient (span)±0.03%FS/ºC(typical value)Operating temperature range-40°C to 80°CElectrical terminal2m (integrated cable) can be ordered/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
