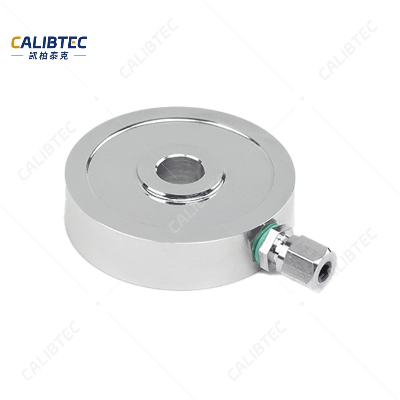

Calibtec Intelligent Compression High Accuracy Load Cell 50kg 200kg 500kg Load CellsProduct DescriptionKWT1D33H is suitable for detecting compression force, which can be applied to the limited space that needs high precission and reliability measurement.Its height is 9mm, diameter is 33mm, weight is 40g. KWT1D33H adopts special strain guages, combined with Kunwei's advanced patch process, to ensure that the it has high precission, repeatability and fast dynamic response. The special design of sensor structure allows customers to install the force sensor at different angles, also can receive reliable and accurate measurement vlues. ParameterUnitModelKWT1D33H-500KWT1D33H-2KKWT1D33H-5KRangeN50020005000SensitivitymV/V1.5±1%1.5±1%1.5±1%Repeatability%FS≤±0.05≤±0.05≤±0.05linearity%FS≤±0.05≤±0.05≤±0.10Hysteresis%FS≤±0.05≤±0.05≤±0.15Creep%FS/30min≤±0.05≤±0.05≤±0.05Weightg404550Bridge ResistanceΩ700±10700±10700±10Output ResistanceΩ700±10700±10700±10Insulation ResistanceMΩ/100VDC≥5000≥5000≥5000Excitation VoltageVDC5~125~125~12Temperature CompensationºC-10~60-10~60-10~60Working TemperatureºC-20~80-20~80-20~80Inherent FrequencykHz>25>25>25Safety Overload%FS150150150Limited Overload%FS200200200Material High Strength Alloy Steel/Stainless SteelProtection Level IP64How to choose a proper sensor?Items Measuring ItemsF&T of 3 DirectionsF or T of 3 DirectionsF or T of 1 DirectionNo. of Outputs631Point of FNot FixedFixedFixedDirection of FNot FixedNot FixedFixedMeasuring AccuracyHighHigh or MediumHigh or MediumBudgetHighMediumLowRecommendation6 Axis F&T Sensor3 Axis F/T Sensor1 Axis F/T SensorNote:F stands for force,T stands for torque. FAQ 1.How to place an order ?Just provide us your application&requirement and we`ll help you confirm all the details.2.What is lead time? 3-5 working days if we have in stock;7-30 working days for bulk order.3. What is the MOQ?1 pc for testing is available for all types. 4.Can you provide customized product?Of course and we can provide whole set solutions for you.5.What is after-sale service?Our R&D team will solve all your problems all the way since you get our product. Calibtec Intelligent Compression High Accuracy Load Cell 50kg 200kg 500kg Load CellsCalibtec Intelligent Compression High Accuracy Load Cell 50kg 200kg 500kg Load CellsCalibtec Intelligent Compression High Accuracy Load Cell 50kg 200kg 500kg Load CellsCompany Profile Our Advantages Application Certifications Partnership Packaging & Shipping Calibtec Intelligent Compression High Accuracy Load Cell 50kg 200kg 500kg Load CellsCalibtec Intelligent Compression High Accuracy Load Cell 50kg 200kg 500kg Load CellsCalibtec Intelligent Compression High Accuracy Load Cell 50kg 200kg 500kg Load Cells/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
