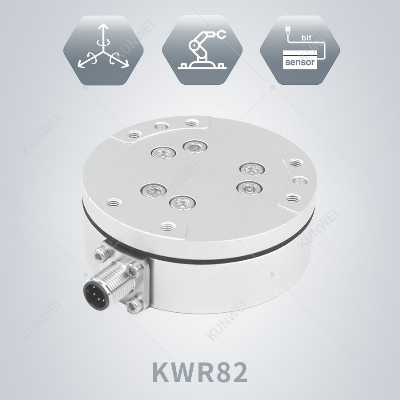

High Resolution Six Axis Load Cell for Medical Detection

High Resolution Six Axis Load Cell for Medical DetectionProduct DescriptionKWR82 series force torque sensor are suitable for many types of collaborative robot terminals, and it is easy to install and operate. It is widely used in precisions assembly , precisions polishing , Entertainment , constant force grinding and other industries.FEATURES:The sensor outputs digital signal, that can be matched with signal conversion box as your requirements.0.5%FS accuracy, including measurement error caused by combined nonlinearity, hysteresis and crosstalk.The minimum force can measure 50N, the maximum force can measure 700N.KWR82 series has strong resistance to bending moment overload, and provides good use effect in the fields of small industrial robots, cutting and grinding.KWR82 series is made of aerospace-grade aluminum alloy, have characteristics of high overload, high rigidity and high sensitivity.  ParameterUnitModelKWR82AKWR82BKWR82CKWR82DFx,FyN50200400500FzN50200500700Mx,MyNm281218MzNm281218Diametermm82Heightmm29.5Material Aluminum AlloySurface Treatment AnodizationOverloading%FS300Resolution%FS0.03Repeatability%FS0.1Accuracy%FS0.5WeightKg0.260.280.320.36Protection Level IP64Working TemperatureºC0-80Sampling FrequencyHz1000Supply VoltageVDC12-48Communication Protocol RS422/RS485/Modbus/CAN/Industrial Ethernet/USB/etc.How to choose a proper sensor?Items   Measuring ItemsF&T of 3 DirectionsF or T of 3 DirectionsF or T of 1 DirectionNo. of Outputs631Point of FNot FixedFixedFixedDirection of FNot FixedNot FixedFixedMeasuring AccuracyHighHigh or MediumHigh or MediumBudgetHighMediumLowRecommendation6 Axis F&T Sensor3 Axis F/T Sensor1 Axis F/T SensorNote:F stands for force,T stands for torque. FAQ 1.How to place an order ?Just provide us your application&requirement and we`ll help you confirm all the details.2.What is lead time? 3-5 working days if we have in stock;7-30 working days for bulk order.3. What is the MOQ?1 pc for testing is available for all types. 4.Can you provide customized product?Of course and we can provide whole set solutions for you.5.What is after-sale service?Our R&D team will solve all your problems all the way since you get our product.High Resolution Six Axis Load Cell For Medical DetectionHigh Resolution Six Axis Load Cell For Medical DetectionHigh Resolution Six Axis Load Cell For Medical DetectionCompany Profile Our Advantages Application Certifications Partnership Packaging & Shipping High Resolution Six Axis Load Cell For Medical DetectionHigh Resolution Six Axis Load Cell For Medical DetectionHigh Resolution Six Axis Load Cell For Medical Detection/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
