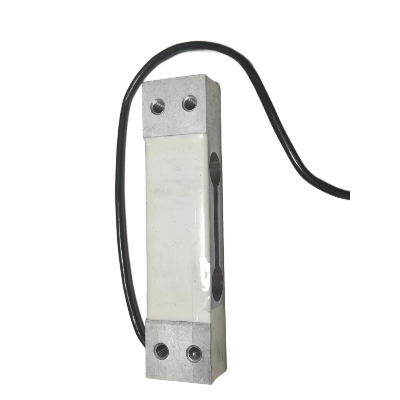

QL-11 load cells are available in the capacities from 3kg to 50kg.Aluminum-Alloy construction with parallel beam type. Silicon adhesive sealed, surface Colourless anodized and anti-corrosion. Integral structure and easy installation.Suitable for electronic price computing scale,electronic counting scale,electronic balance and other electronic weighing devices. Features:1.Capacity:3kg to 50kg.2.Defend grade: IP65.3.High accuracy.reliable performance.4.Integral structure,and easy installation5.Recommended platform size:250x350mm Electrical connection and Dimensions :(dimension unit:mm) Technical Specifications Specifications:capacitykg3,5,10,15,20,30,35,40,50safe overload%FS120ultimate overload%FS150rated outputmV/V2.0 ± 0.2excitation voltageVdc9~ 12combined error%FS± 0.03zero unbalance%FS± 1.5non-linearity%FS± 0.02hysteresis%FS± 0.02repeatability%FS± 0.01creep%FS/30min± 0.02input resistanceΩ406 ± 10output resistanceΩ350 ± 3insulation resistanceM Ω≥ 5000 @ 50 Vdcoperating temperature range°C-20 ~ +60compensated temperature range°C-10 ~ +40temperature coefficient of SPAN%FS/10°C± 0.02temperature coefficient of ZERO%FS/10°C± 0.03 Electrical connection:Excitation+ red Excitation- black Signal+ green Signal- whiteFour-core shielded cable with polyethylene. Cable diameter: 4mmCable length: 0.45 mThe cable length could be chose by customer's application. Ordering code:model-range- rated output-accuracy-defend grade- the length of cable Example:QL-11-30kg-2.0mV/V-0.02%FS-IP65-0.45m /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
