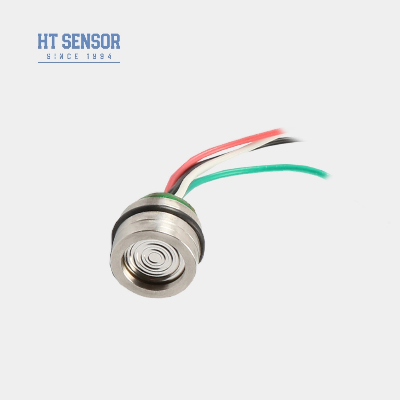

OEM ODM 14mm Mini Pressure Sensor for Transmitter

OEM ODM 14mm mini pressure sensor for transmitterHT14V Silicon Piezoresistive Pressure SensorIntroduction: HT14V is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon element core. It employs the piezoresistive effect of diffused silicon for precise measurement of both liquid and gas pressures. This sensor finds extensive usage in various applications, including air compressors and refrigeration systems .Product  Features:Utilizes advanced technology and is encapsulated in a 316L stainless steel housingWide measuring range 0~350KPa~60MpaSHigh reliability and excellent stability   Constant voltage supplyApplications:Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibilityCompact design, ideal for applications with limited space  Used in process control systems for monitoring and controlling pressure    Commonly used in refrigeration systems and air compressors for pressure measurementElectrical performance:Power Supply: ≤10VDCCommon Mode Voltage Output: 50% of the input (typical)Input Impedance:4KΩ~20KΩOutput Impedance:2.5KΩ~6KΩElectrical Connection:100mm high-temperature wire,ribbon cablePerformance Parameters:Measurement RangeGauge(G)350KPa,1000KPa,2000KpaAbsolute(A)350KPaA,700KPaA,1000KPaA,2000KPaASealed(S)3500KPaS,7MPaS,10MPaS TypMaxUnitNonLinearity  ±0.15±0.3%F.SRepeatability 0.050.1%F.SHysteresis   0.050.1%F.SZero Offset Output  0±10±2mVFull Scale Output  100±1100±2mV Zero Offset Temp. Drift  ±0.8±2%F.S Full Scale Temp. Drift±0.8±2%F.S Compensated Temp.0~70ºC Operating Temperature  -20~80ºC Storage Temperature -40~125ºC Allowable OverloadTake the smaller value between 3 times the full scale or 80MPa  Burst Pressure5X the full scale  Long-term Stability0.2 %  F.S/Year Diaphragm Material316L  Insulation Resistance≥200MΩ 100VDC  VibrationNo change under conditions of 10gRMS, 20Hz to 2000Hz  Shock100g,11ms  Response Time≤1ms  O-ring SealNitrile rubber or Fluoro rubber  Filling MediumSilicon Oil  Weight~20g   The parameters are tested under the following conditions:  10V @25ºC   Outline Construction Dimension  Electrical connection and compensation   Selection Examples  Ordering tips1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the         required air tightness2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.6. If there are any changes to the pin leads, follow the label on the actual core for reference. Q&A 1.Q: What are the features of your pressure sensor transmitters?   A: High precision, durability, and excellent performance. Customization available.  2.Q: Can I customize special specifications?   A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service  3.Q: What is your production capacity?    A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.4.Q: What's the typical delivery period?    A: 5~8 working day for standard models. Customized products may vary.  5.Q: How are the products priced? Any discounts?    A: Competitive pricing with discounts for bulk orders or long-term partners.6.Q: What is the warranty of your products? And after-sales service?    A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote  instruction by PC network is always available.company         /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
