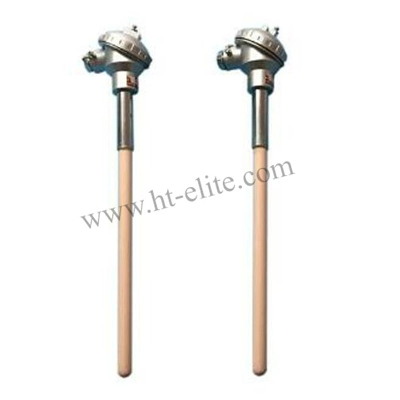

High Temperature Thermocouple Type Ceramic Tube

High Temperature thermocouple B R S type Ceramic Tube B/R/S Platinum Rhodium Thermocouple     Product Description 1. Working PrincipleA device for accurate measurement of temperature.A thermocouple consists of two dissimilar metals joined at two joints in a loop so that the difference in voltage can be measured.Because voltage changes in proportion to temperature, the voltage difference indicates temperature differences.2. CalibrationsThermocouples are available in different combinations of metals or calibrations.Thermocouples known as Types J, K, T, E and N.Although thermocouple calibration dictates the temperature range, the maximum range is also limited by the diameter of the thermocouple wire.    TypeTemp RangeThermocoupleB: PtRh30-Pt6R: PtRh13-PtS: PtRh10-PtN: NiCrSi-NiSiK: NiCr-NiSiE: NiCr-CuNiJ: Fe-CuNiT: Cu-CuNi0~1600C0~1300C0~1300C0~1000C0~900C0~600C0~500C0~350C TypeTemp RangeRTD SensorPT100PT1000CU50-200~+650C-200~+650C-200~+650CPairs of sensor wireSimplexDuplexMounting & Fixing1:without fixing device2:fixed thread3: movable flange4: fixed flange5: right-angle movable flange6:fixed thread in wimble shape protection tubeConnection boxwater-proofSensor end1: variable section2: sheathed elements3: flexible sheathed elementsDiameter of protection tube1:16mm2:20mm3:16mm high aluminum material4:20mm high aluminum material3. Termination OptionsT/C wire with stripped leadsSpade lugsThermocouple PlugsTerminal Blocks for Connection Heads.Know for their versatility as a temperature sensor, thermocouple can be made to variety of shapes.4. AdvantagesCustomized diameter, sheath lengths and lead length Stainless steel braided or hose protection K, J, T and E calibrations Grounded, ungrounded and exposed junctions Flat and drill point Epoxy sealed cold ends Flexible extensions Miner coated and stainless steel sheaths Straight, 45° bend or 90° bend 12 mm and 15 mm locking bayonet caps5. ApplicationBest suited to High-temperature stationary surfaces Automotive industriesChemical and petrochemical industriesEnergy and power plant technologyHeating, ventilation, air-conditioningMachinery, plant and tank measurementPlastics and rubber industriesPower and utilitiesPulp and paperWater and wastewater treatment6. Packages:  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
