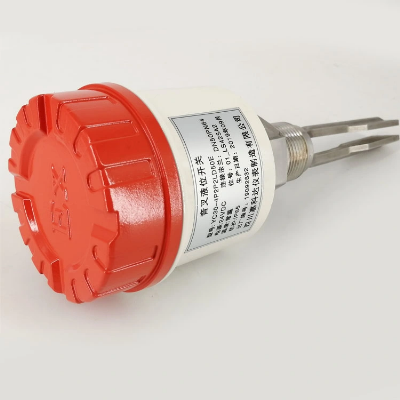

Tuning Fork Liquid Level Meter for Chemical Cement Tank Control

Why choose us:1. 23 years of instrumentation equipment production experience2. Product support OEM / ODM, export to more than 100 countries3. The company area 20,000 square meters, and 150+ orders per month4. Provide email, skype, whatsapp 24-hour one-on-one technical support service onlineTuning Fork Liquid Level Meter Product DescriptionYC series tuning fork level switch is a new type of level switch. It is designed and manufactured using the principle of tuning fork vibration. It is the base of the induction rod of the tuning fork level switch. The tuning fork is driven by the piezoelectric wafer, and the vibration signal is received by another piezoelectric wafer, so that the vibration signal can be circulated and the induction rod resonates. When the material contacts the sensor bar, the vibration signal gradually becomes smaller, and the control circuit outputs an electrical acceptance signal until the resonance stops.Technical Parameters:Fork body length:128mm-200mm( customized)Operating temperature:-40-80ºC (Standard type) ; -40-130ºC(high temperature)Housing material:304 or 316LFork body material:304 or 316LAmbient temperature:-20-70ºCWorking pressure:≤2.5MPaMedium density:≥0.7g/cm³(liquid), >0.1g/cm³(solid)Working power:24VDC(standard), 220VAC( Optional)supply Power consumption:0.5-1WProcess connection:G1", G3/4" thread connection / flange connectionShell protection:IP65Explosion-proof mark:Exd II CT4ABOUT VACORDA /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
