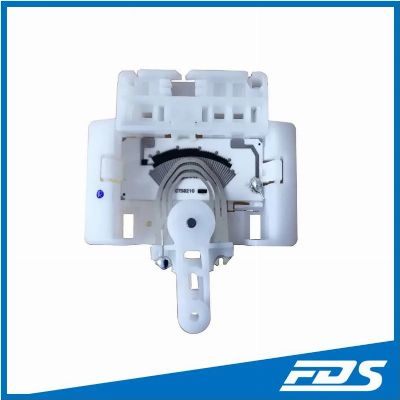

Automobile, Motorcycle Oil Level Sensor

Fuel level sensor (FLS) introductionFDS is working with the biggest FLS OEM manufacturer in China and specially focus on the after sales market, at present, we can supply Fuel level sensor of UAES system, Continental system, Delphi system etc. The quality is same as the original part but cost is much cheaper.  Physical informationProfileFLS assembly partsMain materialSpecial treatment Plastic holderPOM Thick film circuitAl2O3 96% & PdAg ink surface polishingSteel wireStainless steelNickel plating FloatNBR Wiper bodyPOM Spring contactBeryllium bronze  Contact terminalsAu-Pd, Au-Niwelding connectionHarnessTinned CU ConnectorPOM Technical informationsOperating temperature:-45ºC~120ºCAngles & Heightwiper movement angle 45° - 120°, or customizedResistance valueFull tank to empty tank, 10ohm to 300ohm or customizedWear resistance cyclesdepends on the parts materials, Max 5,000,000 times cycles Tolerance Resistance: ±1% Ω,   Fitment dimentions: ±0.1mmFuel resistanceThe FLS can be work in gasoline of E10/E20/E30/M15, Diesel Certification IATF 16949: 2016Test standard:Volksvagen AK-LH20.1 2007Notes:  FDS also can provide OEM service for the customer.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
