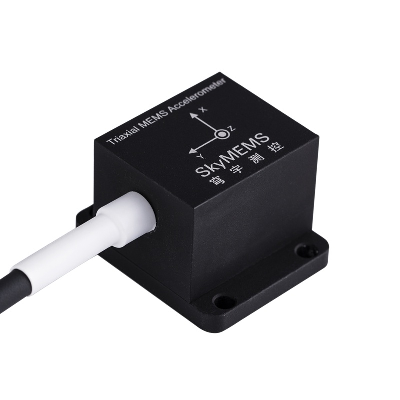

High Accuracy 3 Axis Accelerometer

MAS1000H Triaxial Mems Capacitive AccelerometerMain Features-Single/Dual/Triaxial MEMS Capacitive Accelerometer-Range:±2g/±3g, Excellent Bias Stability-Output: Differential Output / Single-Ended Output-Dynamic Range: ≥110dB, Bandwidth (-3dB): 200Hz-Low Noise: ≤2.5μgrms/√Hz-Non-linearity: 0.1%FS (Full Range)-Extremely Reliable in Harsh Environment-Wide Operating Temperature Range: -40~+85°CBrief IntroductionMAS1000H single/dual/triaxialMEMS capacitiveaccelerometeris one type of high performance vibration monitoring sensor based on MEMS technologies. It adopts7~24V or 5V±3% power supply, and integrates X-Y-Z trial axes (or single axis) and self test function, it adopts high performance accelerometer, the dynamic range can reach 110dB.MAS1000H accelerometer has passed the strictest tests, it enjoys excellent performance in noise, dynamic range, non-linearity, repeatability, temperature drift, shock proof, etc. this product is an ideal option for seismic monitor,vibration monitoring, high speed train/metro train, test platform of vibration and shocking, machine health monitoring, etc.Technical SpecificationsParameterMAS1000H-2MAS1000H-3RemarksAxis number1-2-31-2-3 Range  ±2g±3g Zero bias  ±100mV±100mV Scale factor sensitivity (differential output )  1800±20mV/g1200±20mV/g Scale factor sensitivity (Single port output )  900±20mV/g600±20mV/g Bandwidth (-3dB) 200Hz200Hz (adjustable)Output noise 2.5μg/√Hz2.5μg/√Hz Non linearity 0.1%F.R0.1%F.R Bias temperature coefficient ±0.2mg/°C±0.2mg/°C Cross-axes influence 0.030.03 Scale factor temperature coefficient 120ppm/°C120ppm/°C Accelerometer OutputOutput voltage (differential output ) 0~ ±3.6VOutP :0.5~4.5V       OutN: 0.5~4.5VOutP, OutN full range outputOutput voltage (Single port output ) 2.5±1.8Vfull range outputSelf test functionFrequency19Hzsquare wave outputDuty ratio0.5 Amplitude0.8g peak valueSelf test threshold voltage4Vmin   5VmaxHigh level is validElectrical SpecsWorking voltage7~24V or 5V±3% Working current ≤25mA Start up time 20ms Environment PerformanceOperating temperature-40~+85°C Storage temperature-55~+125°C Shock resistance6000g Physical SpecsDimensions (mm)37×30×25mm Casing aluminum alloy  Weight 30grams  (without lines), 76 grams (with lines) Typical Applications- Seismic Monitor- Micro-vibration Monitoring- Inertial Navigation- Structure/Building Monitoring- Platform StabilityHeart and Fast Service  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
