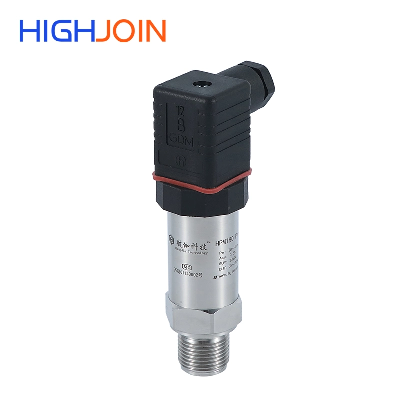

HIGHJOIN Exia II CT4 Explosion-proof 316L Diaphragm 4-20mA Pressure Transmitter

Product DescriptionProduct Overview:HPM180 Exia Explosion proof pressure sensor adopts high stable and high reliably diffused silicon pressure core as sensitive element. The signal modulation circuit within stainless steel shell can transform the signal of transmitter to standard current or voltage signal output. It can be directly connected to computers, control instruments, etc. This product uses all stainless steel structure with good performance, easy installation, good anti-vibration and impact resistance, which can be used in hostile environment for a long time. Imported ceramic pressure core with delicate structure, wide pressure range and various output signals. This product has fantastic stability within the wide temperature range and various pressure interfaces.Features:·High accuracy, all stainless steel structure ·With polarity reversal protection ,overcurrent and overvoltage protection, meet EMI protection requirements·Wide pressure range, available to measure absolute pressure,gauge pressure and sealed gauge pressure·Ingress protection IP65·Diverse structures, easy installation and use, wide universality·DIN43650 output, optional 4-bit LED display·Strong anti-jamming, long term stability·Explosion-proof mark: Ex ia IIC T6 Ga (for 24VDC power supply, 4-20mA output)·Basic safety parameters: Ui:28 VDC Ii:93 mA Pi: 0.65W Ci: 0.04μF Li: 0Parameters:Measuring MediumLiquid, Gas or SteamPressure Range-100kPa…0~0.01…100MPaOverload1.5 times pressure range of full scalePressure TypeGauge, Absolute or Sealed GaugeAccuracy±0.5%FSLong-term Stability±0.2%FS/yearTemperature Coefficient of Zero±0.03%FS/ºC(Reference 25ºC)Temperature Coefficient of Full Scale±0.03%FS/ºC(Reference 25ºC)Working Temperature-30~85ºC(General type);-20~60ºC(Explosion-proof type);-10~60ºC(Intrinsic safety type)Storage Temperature-40~120ºCSupply Voltage5VDC 24VDCOutput SignalTwo-wire 4~20mADC  Three-wire VoltageResistance≤(U-12)/0.02Ω         >10KΩInsulation Resistance100MΩ,500VDCProtection of ShellIP65Electrical ConnectionDIN43650 or M12×1 or Cable OutletStructure Drawing:M12Hirschman  Hirschman with Digital DisplayCable Output  Electrical Connection:Application:Ordering Guide:Related Products:Certification:FAQ:1.    Q: Are you manufacturer or trading company?        A: We are manufacturer which focuses on sensor for 10 years.2.    Q: What's your quality control system?        A: MC, ISO9001, CE Certificated.3.    Q: What is the warranty of your products?        A: Our warranty time is 18 months after shipment.  4.     Q: What is lead time of your product?         A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.  5.     Q: Do you provide customized products?         A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.  6.     Q: What is your MOQ?        A: We have no MOQ limit, small quantity order is acceptable. 7.      Q: What's the transport?                                                                      A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.  8.      Q: What is your terms of payment ?           A: We could accept T/T, Paypal, WU./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
