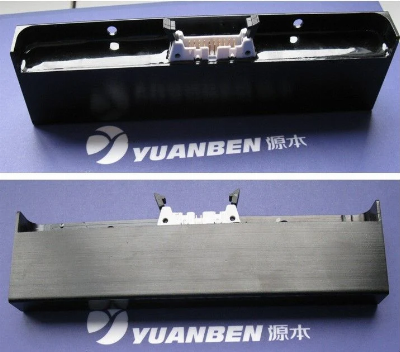

Magnetic Guidance Sensor Mgs-H06 for Agv Application

Magnetic Guidance Sensor for AGV appliance The Magnetic guiding sensor developed by Yuanben, has a special made magnetic position sensor used to find small magnetic field (a magneic path is installed in the floor), and to keep the AGV heading direction continuously under control. The magnetic guidance sensors give signal about the AGV position deviations as the AGV passed the magnetic path, provides an output voltage proportional to the rate of turn at its magnetic path centre axis.   Product ModelMGS-H-S-2-C20Product NumberMGS-H06Material Of HousingAluminum CaseSupply voltage+24 VDC ±5%, ripple (p-p) 1% max.Power consumption35mA max. (at DC+24V)70mA max. (at DC+12V)75mA max. (at DC+5V)Digital type OutputNPN Transistor Open CollectorNormally openApplicable voltage 30V max.Sink current 100mA max.Operation Temperature-10ºC to +50ºC (Non-freezing)Operation Humidity35 to 95%RH (Non-condensing)Prevent ClassIP65Storage Temperaturefrom -30 to +80ºCStorage Humidityfrom 35% to 95%RH (no condensation)TargetMGT-50 -25 series magnetic guide tapeOperation Air Gap30 to 40mm (standard MGT-50-25)SensitivityN-pole;6mT and over/ S-pole; 6mT and overElement6 bitsPitch10mm at even intervalsLogicNormally openCircuitNPN open collector (DC30V, 50mA max.)Residual voltage2V max. (at 50mA)Response1msInsulation Resistance50MOhmConnectorMIL-C-83503, 20PinPrevent circuitOver-voltage and short circuit and reverse polarity protectionMountingBoth Centre axis line of magnetic tape and sensor is CoincideApplianceAGV/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
