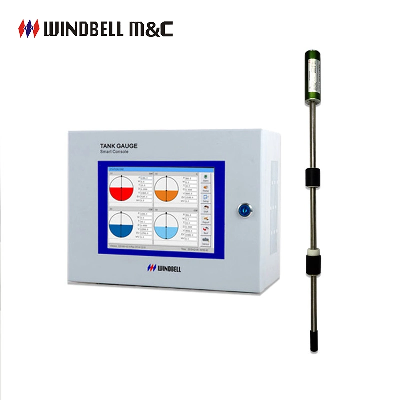

Windbell Atg Remote Monitor Console Probe Fuel Tank Gauge System

Product DescriptionWINDBELL ATG remote monitor console probe fuel tank gauge systemGas station fuel tank gauge system is composed of smart console, magnetostrictive probe and free app. It can help manager monitor fuel level, water level, wolume and temperature of the underground fuel storage tank in real time.The smart console is the display terminal of the automatic oil tank level gauge system and can detect 1 to 12 tanks at the same time. It can monitor product level, water level, temperature, product volume, water volume, empty volume, all kinds of alarms, inventory and delivery information in real time.International graphic touch screen and user-friendly icon, makes it is easy for new user. SP300 Magnetostrictive probe is mainly composed of probe head, temperature sensors, protection steel pipe, magnetostrictive waveguide wire and floaters with magnet inside. Insert probe into underground tank, floaters float on the liquid surface, and slides up and down on rod according to the changes of liquid level. Processing measured data of product level, water level, density values (option), and average temperature of five-points, then transmit these data to smart console by digital communication port.Product AdvantageSS160Plus ConsoleInternational graphic touch screen and user-friendly icons, easy to use.Standard measurement unit, mm or inch, liter or gallon, meet different requirements from different countries.Display product volume and water volume, empty volume, product level and water level, and product temperature for individual tanks.Reports include current inventory, delivery history, alarm, shift, leak, system log, SMS.Operating language optional, support English, Spanish, Portuguese, French, Russian. And can be customized.Support import & export data, tank volume table import, very convenient for console configuration.Monitor up to 12 probes (tanks). Standard configuration is 6 probes.Monitor up to 40 leak sensors.Printing reports by optional external printer or optional built-in printer without any software.Automatic alarm function can show any abnormal status of tanks.Administrator password, different authorization, safe management.Compatible with PC remote software on site's computer.Support standard static or dynamic leak detection on 0.38 L/H or 0.76 L/H. Optional density probe can monitor product quality. Fuel density can be shown in real time on the console.Open communication protocol, can connect to the central control system of mainstream fuel dispensers, totally satisfy management demand of oil retail companies.Update program by USB port, one-touch operation, easy and convenient.iTank APP, support Android and IOS system, monitor tank information remotely in real time.Boot welcome interface can be customized.SP300 Magnetostrictive Probe±0.5mm accuracy.RS485 communication protocol.3-in-1 measurement, detect fuel height, fuel temperature and water height at the same time.4 wires cable.IP68 protection grade.Intrinsically safe grade.ATEX, EAC, CQST, SIL approved.Length customized production.Applied in Gasoline, Kerosene, Diesel, Ethanol gasoline, Methanol gasoline, Approved light oil.Product Parameters  SS160Plus ConsolePowerAC220V ±10%, 50/60HzWorking temperature-20 to 60ºC (-4 to 140ºF)Display8-inch LCD touch screen, 800x600 resolutionEx-proof grade[EX ia Ga] IIAMonitor probesStandard is 6,Up to 12,Leak sensorSupport, 40 MaxRelay output2 groups. Node capacity AC250V/3A. DC30V/3ASMS moduleOptional GPRS moduleOptional Running/Alarm indicator YesWIFI functionNo Inventory and delivery managementYes Density and mass measurementYes Output voltageDC 12VSafety barrierWB-GSB03Built-in printerOptionalExternal printerSupportRS485 port1RS232 port2USB port1Ethernet port1Buzzer alarmYesExternal sound-light alarmSupport, optionalTank tableYes, simulate/input/uploadReportsInventory, delivery, shift, alarm, leak detection test, system log, SMS for optionalPC remote softwarePCR200Anti-theft functionYesDimension (L*W*H)30×23×14.5 cmSP300 Magnetostrictive ProbePower supplyDC12VPrecision           ±0.5mmRepeatability ±0.1mmResolution of product level 0.0069mmResolution of temperature 0.0078ºCResolution of water level0.0069mmTemperature range  -40 to 85ºC(-40 to 185ºF)Points of temperature measured5Maximum communication distance1200mCommunication   RS485Intrinsic safety parameter   Power port: Ui = 15V DC, Ii= 400mA, Pi = 1.5W, Ci = 3.63μF, Li = 0mH;Signal port: Ui = 7.14V DC, Ii= 147mA, Pi = 260mW, Ci = 32.6μF, Li = 0mH;Associated apparatusWB-GSB03 safety barrierExplosion proof gradeEx ia IIA T4 Ga,   Ex II 1G Ex ia IIA T4 GaProtection gradeIP68Applicable mediumGasoline, kerosene, diesel, Ethanol gasoline, Methanol gasoline, Approved light oilDefinition of wiresBlue - Power + : Brown - RS485A: White - RS485B: Black - Power -Communication address  6 digits, see the"Manufacturing code"or S/N code on probe nameplate, this is also Probe ID in communication with console and FMSApplicationRelated Products Our Advantages Pa
