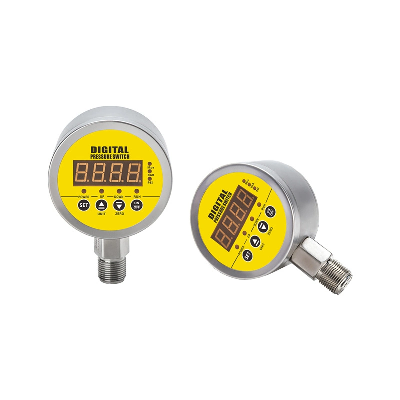

Gas Intelligent Digital Pressure Switch with LED Display

Product Description:MD-S 828E is an intelligent pressure switch, which has 2 independent relay outputs,each output has a normally open normally closed signal,and the return difference can be set independentlyThis series of products uses 304 stainless steel shell and connection, built-in high-precision pressure sensor, large-size bright four-digit LED display. The 4-20Ma/RS485 output is optional.This series of pressure switches also have multiple functions such as one-key resetting, three unit switching, independent hysteresis setting, etc.The design of the circuit pays attention to stability and fully takes into account the actual situation of the automation site. It has anti-dry magnetic interference, anti-surge protection, anti-reverse protection, etc.The product adopts a compact all stainless steel shell, which is resistant to vibration, frequent impact, beautiful in appearance, sturdy and durableTechnicial Characteristics:80MM diameter, 304SS shellRadial and axial mountingDifferent pressure units to choose, one key to zero clearingDouble relay output signal, each group with NO/NC, returning difference be set independentMultiple connection modes, be used as controller, switch, digital electro connecting pressure gaugeApplications:Automated production line  Engineering machinery  Medical equipmentPump & compressor  Source and water treatment system  Agricultural machineryTesting jig    Hydraulic and pneumatic systemSpecification:RangeGeneral Range : 0~0.2…1.0…1.6…5…10…25…40…60…100…160MPaMicropressure Range : 0~5…10…25…40…60…100kPaNegative Pressure Range : -100~0 kPa   (-0.1~0 MPa)Overland pressure 10MPa 150%Alarm PointThe whole range is availableAlarm TypeDouble relay output signal ( each group NO/NC)Acc.±0.5%FSStabilityTypical: ±0.5%FS/yearLoad Capacity220VAC  3ASupply24VDC  220VAC   380VAC (Selectable)Operating Temperature-20~80ºCCompensation Temperature-10~70ºCElectrical ProtectionReverse voltage protection, Anti-electromagnetic interferenceSampling Frequency5 Times / secMeasurement Medium Gas , liquidPressure ConnectorM20*1.5 (other are custonized)Connector Material304SSElectric ConnectionWaterproof aviation plug ( line 0.7m)Output LineSource: Red Balck /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
