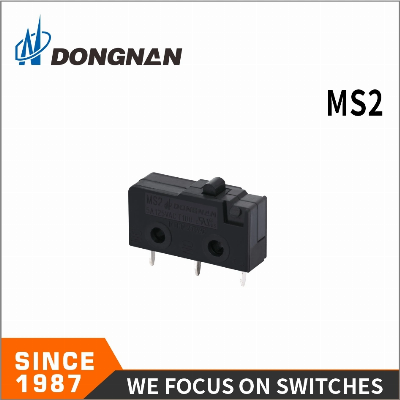

Internal configuration drawing 1.Has protection function. 2.Widely used in all kinds of home appliances, and also can be used in such as vacuum cleaner etc. appliances which works in bad conditions. Product show Technical characterictics Item Value Operating speed 0.1mm-1m/s (no lever) Operating frequency Mechanical 60 cycles/min; electrical 25 cycles/min Insulation resistance ≥100MΩ(500VDC) Contact resistance ≤50mΩ (Test voltage) Between non-continuous terminals AC1000V , 50/60Hz , 1min (Test voltage) Between each terminal and other exposed metal parts Between each terminal and ground AC1500V , 50/60Hz , 1min Vibration resistance 10-55Hz , 1.5mm Double amplitude Shock resistance endurance : 1000m/s2 max Wrong action : 300m/s2 max Electric shock proof protection grade II class Degree protection provided by enclosure IEC IP60(specific specification) Life Mechanical≥1,000,000 cycles Electrical ≥ 50,000 cycles Safety approvals UL ,CUL, TUV,CE, SEMKOCompany Profile DONGNAN ELECTRONICS CO.,LTD established in 1987, with more than 30 years manufacturing experience in making switches. Mainly produce micro switches, water proof micro switches, power switches, gate control switches, rotary switches, voltage-selected switches etc. We are a national-level new and high-tech switch manufacturing enterprise that has R&D, producing, marketing and after-sales service, and our switches are widely used in whole China and oversea countries. At present, we set up many offices and warehouses in the production area which home appliances are concentrated, to build the fastest technical service and logistics distribution system. Company information Exhibition Certifications FAQ Q1.Can you customize micro switch? Yes, switch can be customized.Q2.What is your main project for export?We mainly produce micro switches, but also waterproof switches, power switches, push button switches, rocker switches, etc.Q3.How many square meters of your factory?74336.Our new factory is about 74,336 square metersQ4.How many free samples can I get?We can offer 5-10 free samples. Q5.Does your product meet ROHS standards?Yes, we meet ROHS standards /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
