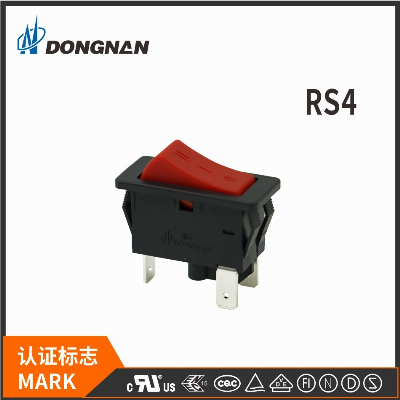

Dongnan RS4 Electronic Equipment Automation Equipment Rocker Switch

Internal configuration drawing 1.A variety of contact terminals.2.A variety colors of cover and button.3.Widely used in home appliances,electric equipments, automatization equipments and similar equipments.Product show Technical characterictics ltemValueDegrees oftemperatureT85/55Rating8A 250VAC;16A 125VAC (UL)12(10)A 250VAC (TUV)Operating force0-1:5.5±1.5N;1-2:7.5±1.5NOperating FrequencyMechanical 60 cycleslmin; electrical 20 cycles/minInsulation resistance10OMΩ(500VDC)Contact resistance≤50MΩ(lnitial value)TestvoltageBetwveen terminals of the same polarityAC1500V,50/60Hz,1minBetween current-carrying metal parts and ground(case),and between each teminal and non-current-carrying metal parts.AC1500V,50/60Hz,1minVibration resistance10~55Hz,1.5mm Double amplitudeElectrical life10,000 cyclesSafety approvalsUL,TUV        Company Profile     DONGNAN ELECTRONICS CO.,LTD established in 1987, with more than 30 years manufacturing experience in making switches. Mainly produce micro switches, water proof micro switches, power switches, gate control switches, rotary switches, voltage-selected switches etc. We are a national-level new and high-tech  switch manufacturing enterprise that has R&D, producing, marketing and after-sales service, and our switches are widely used in whole China and oversea countries.     At present, we set up many offices and warehouses in the production area which home appliances are concentrated, to build the fastest technical service and logistics distribution system. Company information Exhibition Certifications FAQ Q1.Do you have stock?Normally we don't have stock, we produce to order.Q2.Can we paste our logo at your product/package? It depends.Q3.How do you charge the sample shipping cost?Normally samples be free, shipping cost on your side.Q4.What is your minimum order quantity?2000.Normally MOQ is 2000pcs.Q5.How much is unit price for each item?We need to know which switch type you need before quoting. Q6.What is your monthly output?Fifty million pcs.Q7.Where is your factory?No.218 Weishiyi Rd,YueQing Economic Development Zone, ZheJiang Province,China  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
