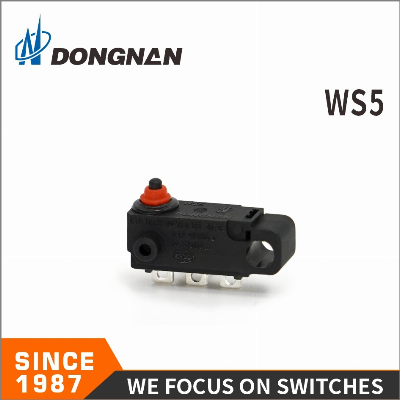

Ws5 Waterproof Micro Switch IP67 Company Customization

Internal configuration drawing 1.Small size , compact structure, long travel , dustproof, waterproof.2.A variety of contact terminals, provide with a variety kinds of wires.3. A variety of levers.4.Can be used in environmental resistant requirements application, outdoor equipments such as automobile , home appliances , industrial control equipment  etc.Product show Technical characterictics ItemValueOperating speed0.1mm-1m/s(no lever)Operating FrequencyMechanical 60 cycles/min; electrical 25 cycles/minInsulation resistance≥100MΩ(500VDC)Contact resistanceTerminal type ≤ 50mΩwire type ≤ 100mΩ(24#,L ≤ 200mm)(Test voltage) Between terminals of the same polarityAC500V,50/60Hz,1min  (Test voltage) Between current-carrying metal parts and ground(case),and between each terminal and non-current-carrying metal partsAC1500V,50/60Hz,1minVibration resistance10-55Hz,1.5mm double amplitudeShock resistanceendurance:1000m/s2(approx.100G)max Wrong action:300m/s2(approx.30G)maxElectric shock proof protection gradeI classDegree protection provided by enclosureIEC IP67(Besides terminal part of terminal type) Or other gradesLifeMechanical≥500,000 cyclesElectrical ≥100,000 cyclesSafety approvalsUL/CUL,TUV,CE,CQCCompany Profile     DONGNAN ELECTRONICS CO.,LTD established in 1987, with more than 30 years manufacturing experience in making switches. Mainly produce micro switches, water proof micro switches, power switches, gate control switches, rotary switches, voltage-selected switches etc. We are a national-level new and high-tech  switch manufacturing enterprise that has R&D, producing, marketing and after-sales service, and our switches are widely used in whole China and oversea countries.     At present, we set up many offices and warehouses in the production area which home appliances are concentrated, to build the fastest technical service and logistics distribution system. Company information Exhibition Certifications FAQ Q1.What is your delivery method?Express delivery/Forwarder, depends on customer's requirement.Q2.Are you a trading company or factory? Factory. Q3.Do you offer free samples?Yes, we can offer some free samples.Q4.When will the goods be shipped out after order placed?The production will be arranged after payment, and the delivery date depends on order quantity.  Q5. Do I have more discount if I order large quantity? Better price for large quantity for one shipment.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
