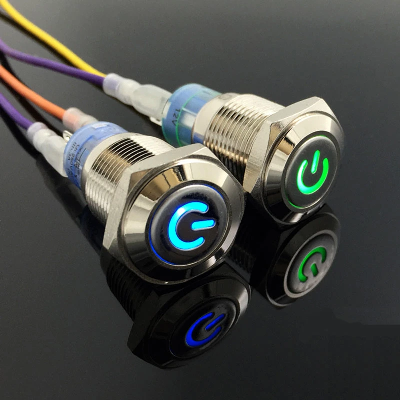

Ring Illuminated Anti-Vandal Push Button Switch, LED Push Button Switch

Model Number GQ16 seriesMounting hole size16mm DiameterSwitch Rating2A/36VDC 0.5A/220VContact Configuration1NOOperation TypeMomentaryIP DegreeIP65,IK08 (Customizable IP67)SwitchingX(double-break slow-motion contact)Panel Thickness1~6mmMechanical Life1,000,000 cyclesElectrical Life200,000 cycles(36VDC)  50,000 cycles(220V)Operation PressureAbout 4NOperation TravelAbout 2mmConnection typeBinding post,Pin terminal,Long pin terminal(Customed)Head shapeDomed,Flat Round,High Round,Flat+Flat,Flat+High Flat(Customed)LED TypeSingle-point,Annulus(Customed)LED ColorBlue,Red,Green,Yellow,Orange,White,Black(Customed)LED VoltageAC/DC 6V,12V,24V,220V (Other voltage grade can be customized)MateriallBodyStainless Steel,Nickel-plated Brass,Aluminium alloy(black),engineering plastics(Customed)ButtonStainless Steel,Aluminium alloy(black),Brass(Customed)BasePBT,PA(Customed) SpecificationOperation Temperation-25ºC~+55ºC(no freezing)keep the air flowing around illuminated push buttonOperation Humidity45~85%RH(no condensation)Contact Resistance≤50mΩInsulation Resistance≥1000MΩDielectric Strength2000VA C50Hz.5 secondsVibration Resistance50HZ.Amplitude 1.2mmShock Resistance>10gSolder Heat Resistance320ºC(or 30W soldering iron)no more than 2 seconds) Lamp RatingLamp TypeLED lamp(AC/DC)Led ColorR G Y O B WLife40000hours(Reference)Rated VoltageAD/DC 6V.AC/DC 12V.AD/DC 24V.AC/DC 36V.Rated CurrentAbout 15mADropping WayExternal resistanceLamp Circuit DiagramUsing AC/DC LED lamp,the terminals have no differece of anode and cathode. Note:DC LED and other voltage can be made to orderWhy choose our switches 1) We can provide you with different types of micro switches for your selection. 2) We can offer good quality electric life 500, 000-1, 000, 000times. 3) Various operating force, height and color for one switch for your choice. 4) Safety, on-time delivery, excellent quality with competitive price. 5) ODM&OEM professional design. Customer's questionsQ1:How about the delivery time? Answer:It's depends on the quantity, for example, 10000PCS need to OEM, delivery time is 3-7 days. Q2:What quality you can offer to us? Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free. Q3:Can you give me samples to test? Answer:Yes Q4:What's you MOQ? Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order. More information of our products, please do feel free to contact us. Reply will be available within 24 hours. Thanks! /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
