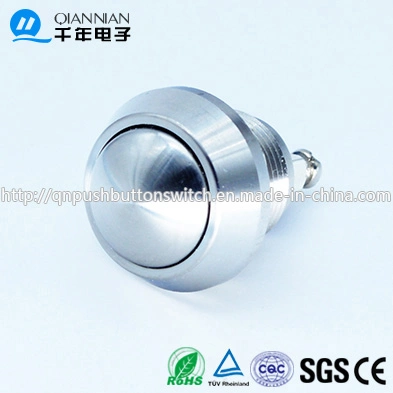

12mm Domed Head Momentary (NO) Nickel Plated Brass Piezo Push Button Switch

        title:QN12-A3 12mm   Momentary Domed Head Screw Pin terminal Waterproof metal push button switch       They are widely used in household appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.Product brandQIANNIANProduct nameButton switchProduct modelQN12-A3Product informationMounting hole12mmOperation typesMomentaryHead shapeDomed Head, Screw Pin terminal,Enclosure materialNickel plated brass/Stainless SteelDegree of protectionIP65 IK08Contact parametersSwitch rating2A/36VDCContact configuration1NOContactSilver alloy,Screw Pin terminalOther parametersMechanical life50,000cylesElectrical life50,000cylesTerminal TypeScrew TerminalContact resistance≤50mΩInsylation resistance≥1000mΩDielectric Strength2000VACOperation Temperature-20ºC~+55ºCPanel thickness1~6mmnut torque5~14NmOpration pressureAbout5NOperation strokeAbout2.5mmBasePA66Packages100PCS/BOXWebsitehttp://qnpushbuttonswitch.en.made-in-china.comOfficial websitehttp://qnpushbuttonswitch.en.made-in-china.comProduct size /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
