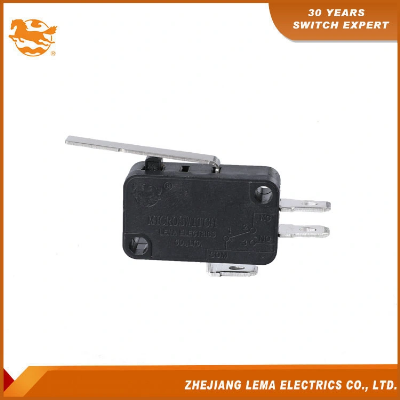

Customized Kw7-1 Approved Snap Action Lever Micro Switch

Customized KW7-1 approved snap action lever micro switchRating3A, 8A, 16A/250VAC, 125VAC 0.6A/125VDC 0.3A/250VDCInitial contact resistance≤25mΩInitial insulation resistance ( At 500V DC)≥100mΩDielectric strengthBetween non-consecutive terminal1000Vrms, 50/60Hz, 1minBetween current carrying and non-carry metal parts1500Vrms, 50/60Hz, 1minBetween ground and each terminal1500Vrms, 50/60Hz, 1minMax. Shock resistanceMechanical durable1000m/s2Malfunction300m/s2Vibration resistance10-55Hz, 1.5mm double amplitudeExpected lifeMechanical20000000Electrical100000Ambient temperature-25 to +85Ambient humidity85%RH maxOperating frequencyMechanical60 times/minElectrical25 times/minOperation speed0.01mm-1m/sCompany Profile:Zhejiang Lema Electrics Co.,Ltd is located at Wenzhou city of Zhejiang province in China.LEMA specialized in research and development, manufacture and sales of micro switches,limit switches, push button switches, foot switches, toggle switches.With about 30 years professional experience of developing and producing switches, LEMAhas become one of professional control switch manufacture in China with a factory of about11000 square meters of floor space./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
