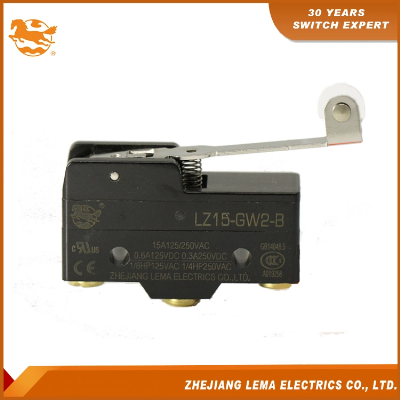

Lema Hinge Plastic Roller Lever Micro Switch Lz15-Gw2-B

Lema Hinge Plastic Roller Lever Micro Switch LZ15-GW2-BOperating speed0.01mm-1m/sOperating frequencyMechanical:240 operations/minElectrical:20 operations/minInitial insulation resistance100MΩmin.(at 500VDC)Initial contact resistance25MΩmax.Dielectric strengthBetween non-consecutive terminals1,000Vrms, 50/60Hz for 1 minBetween non-current carryingmetal parts and each terminal2,000Vrms, 50/60Hz for 1 minBetween ground and each terminal2,000Vrms, 50/60Hz for 1 minVibration resistance10-55Hz,1.5mm double amplitudeMax.shock resistanceDestruction: 1000m/s2Malfunction: 300m/s2Operating lifeMechanical life2,000,000 operations min.Electrical life100,000 operations min.Company Profile:Zhejiang Lema Electrics Co.,Ltd is located at Wenzhou city of Zhejiang provincein China.LEMA specialized in research and development, manufacture and sales of microswitches, limit switches, push button switches, foot switches, toggle switches.With about 30 years professional experience of developing and producingswitches, LEMA has become one of professional control switch manufacture inChina with a factory of about 11000 square meters of floor space. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
