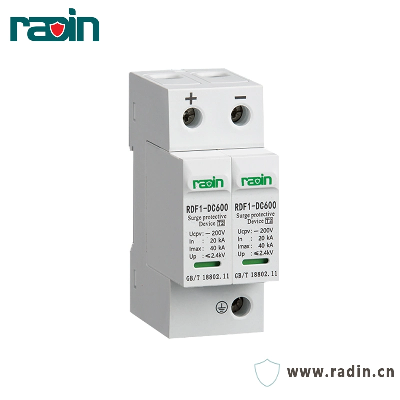

Rdf1-DC600 Series Solar Surge Protective Device DC600V 40ka

ApplicationRDF1-DC series solar DC surge protector, it adopts the fast heat conduction structure of the low temperature solder joint and the large creepage distance after tripping (>20mm), the tripping is sensitive and there is no risk of fire, the red and green windows are visible ( Green: normal/ Red: fault) indication and dry contact remote signal alarm which can remotely inform the working status of the surge protector, which is convenient for operation and maintenance.The product can work for a long time in harsh environments such as acid and alkali dust, salt spray, high temperature and humidity, simple and convenient installation and maintenance, long service life, 35mm DIN rail installation, and meets general installation requirements.ApplicationFor civil applicationFor industrial application Technical DataItemRDF1-DC200RDF1-DC600RDF1-DC1500Max, photovoltaic voltage Ucp  V200V690V1500VProtection level      Up 1.2kV2.4kV3.5kVNominal discharge current  In(8/20us)20kAMax discharge current  In(8/20us)40kAResponse time≤25nsOperating temperature-40ºC - +80ºCRelative humidity≤ 95% (max 40ºC )Altitude≤4kmIP protection classIP20Case materialThermoplastic UL94V-0StandardsIEC 61643-1Dimmensions /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
