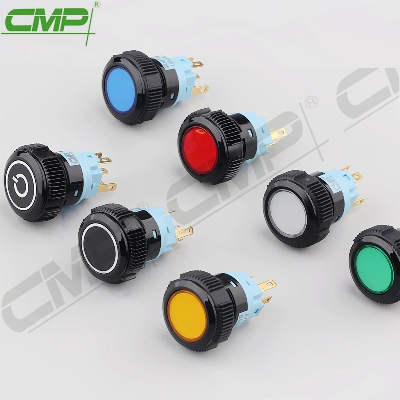

Product information:19mm SPDT 1NO1NC plastic push button switch with indicator lightSpecification: ProductPush Button switchItem 19mm plastic illuminated Push Button switchThread Diameter:19mmOperation typeMomentary (MU019P/F11-E)Latching (MU019P/F11Z-E)Housing materialPlastic Contact configuration1NO1NC Switch rating5A/250V AC/DCTerminal typesoldering pin Contact terminal materialsilver plated goldContact silver plated/silver plated gold (made to order)Button typeflat button with lightSwitch colorBlack /SilverLED colorred,green,white,blue,yellow,orange purple,bi-color,tri-color LED voltage2V/6V/12V/24V/220V (made to order)Contact Resistance≤50mΩInsulation Resistance≥1000mΩDielectrical Intensity2000VACVibration Resistance 10~55HZ, amplitude 1.2mm p-p Mechanical life:≥500,000 cyclesElectrical Life:≥200,000 cyclesOperating Temp-20ºC~+55ºCTorque 5-14NmOperation PressureAbout 5.5NOperation TravelAbout 2.5mmProtection Level IP65/IP67Soldering Temperature20W/5 seconds or 260 °C/3 secondsCertificateCE,TUV,Rohs Common description for push button switch MomentaryWhen you push switch and then move your finger, the actuator will back to the original position. LatchingWhen you press the button, it keeps pressed until you press again N.O.Normally Open N.C.Normally Closed SPSTSingle Pole Single Throw DPDTDouble Pole Double Throw Silver plated gold Wonderful material with silver plated goldPlease feel free to contact me for more detail. Contact us: Introduce: Companies always adhere to the "user first, quality first, reputation first" purpose, adhere to the "people-oriented strict management, meticulous, for the customer scale continuous improvement" quality policy.Certification: Categories: We have all kinds of push button switch. If you want it, Please contact me. We will give you the satisfactory reply.Packaging: packaging: inner bubble box--- inner box---carton (or by your request.) Shipping :DHL, EMS, TNT, Fedex, UPS and others international express FAQ: 1. What time you can delivery? Small Order (1-3 Days) Big Order (5-7days)2. What transportation you can usually choose ? EMS UPS DHL or by your request.3. What is the packaging specification?400pcs/CTN 31cm*29cm*24cm plastic push button switch Plastic Switch Plastic Push Button illuminated plastic push button illuminated plastic switch Panel Mounting plastic Switch Panel Mounting plastic Push Button Push Button with Light Plastic Illuminated Push Button Plastic momentary Switch Plastic momentary Push Button illuminated plastic push button /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
