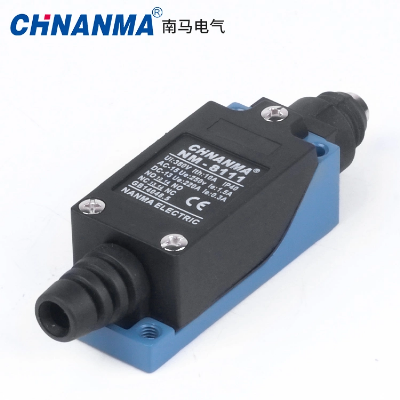

5A 250VAC Push Plinger Waterproof Roller Limit Switch

Double circuit type of limit switchHighly rigid construction, consists of intensive plastic and zinccast (Head and cover snugly fit in box)Small volume, water-proof and oil-proof constructionBuilt-in basic switch with double spring mechanism, longer mechanical lifeSmooth operation with greater OTEasy-to-wire circuit opening designWide variety of actuators, easily useProduct characteristics Model No. TZ-8108NameLimit switchOperation speed0.5mm-50cm/secOperating frequencyMechanical: 120 operations/minute, Electrical: 30 operations/minuteContact resistance25mΩ max.(initial value)Insulation resistance100mΩ min.(at 500VDC)Dielectric strength1000VAC,50/60HZ for 1 minute between terminals of the same polarity1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts1500VAC,50/60 HZ for 1 minute between each terminal and groundVibration10-55HZ,1.5mm double amplitudeShockMechanical durable:1000m/Sec2;Malfunction:300m/Sec2(about 30G'S)LifeMechanical: 10,000,000 operations above;Electrical: 500,000 operations aboveWeightAbout 130-190gDegree of protectionIP65Payment term30% deposit in advance,70% before shipment,100% T/T in advanceCertificateTUV, CCC,CE,ISO9001Logo      Customized logo with Decal / Frosted / Print are available as requestDesign ability        We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) RatingRated VoltageNoninductive Load(A)Inductive Load(A)Resistance LoadLamp LoadInductive LoadMotor LoadNCNONCNONCNONCNO125VAC250VAC500VAC55551.510.70.5333321.510.88VDC14VDC30VDC125VDC250VDC5550.40.25550.40.2333333544444333333Inrush CurrentN.C: below 24A, N.O: below 12APertection degreeIP65Operating temperature-20'C~60'COperating humidity ≤ 85%Outline And Installation Dimension  OF Max800g(7.84N)RF Min60g(0.59N)PT Max30°OT Min60°MD Max15°TT90°Our service   Chnanma Company enjoyed a good reputation internationally in the circle of electric & electronic equipments. Regarding "Quality First, Credit First" as the everlasting topic,it insists on developing business with science & technology and researching and developing new products continuously.Under top quality, excellent service, good reputation . Chnanma wishes to cooperate with clients from all over the world to create brilliant future.Why choose Us?1) We can provide you with different types of micro switches for your selection.2) We can offer good quality electric life 500, 000-1, 000, 000times.3) Various operating force, height and color for one switch for your choice.4) Safety, on-time delivery, excellent quality with competitive price.5) ODM&OEM professional design.Customer's questionsQ1:How about the delivery time?Answer:It's depends on the quantity, for example, 10000PCS need to OEM,delivery time is 3-7 days.Q2:What quality you can offer to us?Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.Q3:Can you give me samples to test?Answer:YesQ4:What's you MOQ?Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.Q5:What's the delivery term?Answer:Both EXW and FOB Ningbo are acceptable.Q6:What's the payment term?We could start our discussion about payment term from second order on.Q7:What's the shipment way?Answer:Express:DHL, UPS, FedEx, TNT and SF express.Forwarder:Air shipment or sea shipment.6.More information of our products, please do feel free to contact us.Reply will be available within 24 hours. Thanks!  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
