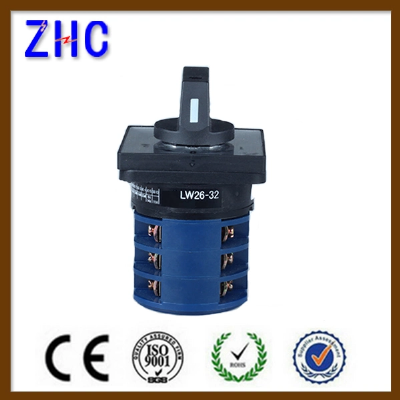

Lw26 Factory Price Rotary Switch Spring Limit Switch Changeover Switch

LW26  factory price rotary switch spring limit switch changeover switch1.Products Introduction      The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,change-over of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and change-over switch of machinery and welding machine.      The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.      The LW26 series have 10 current ratings:10A,20A,25A,32A,40A,63A,125A,160A,250A and 315A.They were designed for multiple functions,wide variety of applications.      The LW26-10,LW26-20,LW26-25,LW26-32F,LW26-40F and LW-60F have finger protection terminals.      LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5, HZ10,and HZ12.      The LW26 series rotary switch has two derivatives,LW26GS Pad-lock type and LW26S Key-lock type.Both of them are applicable in circuits when an physical control is required.      We can equip protective box(IP65) for 20A to 250A.2.Working Conditions    a.Ambient temperature DO NOT exceed 40ºC, and the average temperature,measured over a period of 24 hours,       DO NOT exceed 35ºC.    b.Ambient temperature should not be below -25ºC.    c.Should not be isstalled above 2000m above sea level.    d.The humidity should not exceed 50% when the ambient temperature is 40ºC and higher humidity is allowed for lower temperature.3.Installation Conditions   a.A clean environment is required    b.Please follow our manual4.Order Procedure     When placing an order please specify the contact diagram of the product you require.The LW26 series rotary switch have the similar contact diagram as the other rotary switches like LW2D,LW5D,LW6D,LW8D,LW12,LW15,HZ5D and HZ25D.Our factory have publishedWhich will help you to specify the contact diagram.     In addition,please specify the current rating, mounting plate,handle type,color and quantityas well.For instance:     When ordering 20A,rotary angle 60°, character code C,contact diagram code 5391, M1 plate, black R handle 20 unites. The order can be: LW26-20.6C5391/2A11R(M1R)20units.     Due to the update of the technologies, we reserve the righting of updating the catalogue without further notices.FAQ How to Order?1. Please let us know what kind of model.2. Proforma invoice (PI) will be sent to you.3. Please check and confirm the PI.4. Once we confirmed the order, please pay the discussed deposit soon.5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.6. OEM/ODM is welcomed.Terms of Shipping:1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).2. We Provide Drop shipping Service.3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.Terms of Payment:1. For bulk order, TT or L/C at sight.2. 30% deposit and 70% against shipping documents.3. Sample order we accept payment such as paypal, western union, visa card.Warranty:1.We provide 2 year quality warranty.2. If the product is defective, please notify us within 3 days of delivery.3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods . /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
