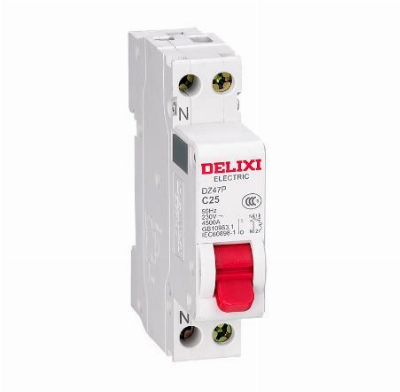

Delixi Dz47p "Phase Neutral" 1p+N Circuit Breaker Air Switch 230V

  Rated insulation voltage Ui (V)500Wiring terminal formU-shaped wiring terminalMaximum working voltage Uemax 1P+N (V) 230ACMaximum wiring capacityCurrent level 6-40A: 16mm²Rated short-circuit capacity Icn (IEC/EN60898) (kA)4.5Maximum limit torqueCurrent level 6-40A: 2N. mRated impulse withstand voltage Uimp (1.2/50) (kV) 4Electrical life10000 timesDielectric test voltage (kV)2kV (50/60Hz, 1 minute)Mechanical life20000 timesIsolation functionAvailableProtection level (installed in the distribution box)IP40Pollution level Level 2Conforming to standardGB/T 10963.1 IEC/EN60898-1Tripping formThermal magnetic trippingReference set temperature30 ° CDZ47P "Phase line + neutral line" circuit breaker Product nameTrip type Rated current DZ47PC6C: C type D: D type6: 6A10: 10A16: 16A20: 20A25: 25A32: 32A40: 40ANote: The product can be assembled with accessories OF, SD, MSN, MV, MN, MVMN, FF, FS, MO (active type), and MOWY (passive type)Frequently Asked Question (FAQ)1.How could I get a sample?   A:Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.2.Sample time?   A:Existing items: Within 10 days.3. Whether you could make our brand on your products?   A:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.                            4. How to guarantee the quality of your products?   A:1) Strict detection during production.      2) Strict sampling inspection on products before shipment and intact product packaging ensured./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
