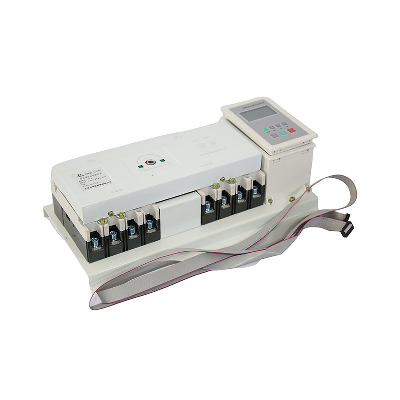

ATS Switch Rimq2-100/4A Automatic Transfer Switch with Remote Control RS485

Structure and featuresRIMQ2-100/4A series Automatic Transfer Switch,is composite by 2PCs 3P or 4P mini circuit breaker,mechanical chain transmission mechanism,controller,etc,the feature will be as follows:1. Small in volume, simple in constitution; there is provide 3P,4P. easy to operation and long to use.2. Transfer switch driving by single motor,a smooth,no noise,the impact is small.3. With mechanical interlocking and electrical interlock,change over credibility,could be supply by manual or automatic operation.4. Have the short circuit,overload protection also the over voltage,under voltage,loss phase function and also the intelligent alarm function.5. Automatic switching parameters can be freely outside.6. With computer network interface for remote control,remote adjustment and remote communication,remote sensing and other four control function and so on. Working conditions1. Ambient air temperature of -5ºC to +40ºC,and at 24 hour average temperature does not exceed +35ºC.2. The installation location no more than 2000 meters.3. The maximum temperature of +40ºC,the air relative humidity is no more than 50%,at a low temperature can be allowed to have a higher relative humidity,such as 20ºC at 90%. special measures should be taken for occasional condensation due to temperature changes.4. Pollution level:grade 35. Installation category:3.6. The two power lines are connected to the upper side of the switch,and the load line is connected to the lower side.7. The location of installation should not have significant vibration,impact./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
