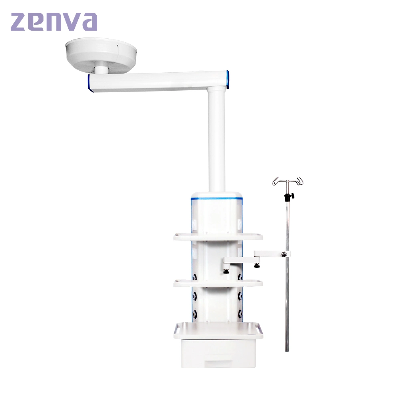

Ceiling Tower with Gas Outlet in Medical Gas Equipment and Electric Power

Detailed Technical Parameter1. Apply in operating room, endoscope room, anesthesia room and hospital wards so on2. Available in single and double arm configurations. Each joint has a rotation range up to ≤350 degree.3. Ceiling Type4. Pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.5. One arm, can rotation, rotation angle≤350 degree.6. High-strength aluminium alloy, wear-well reduce your cost7. Pendant Color Blue, Red and so on8. Pendant Dimension can customize9. Medical gas outlet optional German / British /America/Japanese/ French /Chinese standards.10. Can horizontal rotation, cannot lift  SpecificationModelEX-50-E-S Single ArmMarkMaterialUsed high-strength aluminum allo, Modular Design, Surface Electrostatic Powder Painting,                                  Prevent corrosive, easy to clean.Low maintenance,   Brake wayDamping Friction Brake, to make sure without drifting and easy to stop, insure safePneumatic is optionalRotary arm length1000mm (standard configuration)Length is optionalRotary Radius≥650mm Head ServiceColumn, Standard Height 800mmHeight is optionalLoading≥180kg Shelf loading≥60kg Degrees rotation≤350 º  Standard ConfigurationModelEX-50-E-S Single ArmMarkShelf2 pcs Drawer1 pcs I.V Pole1 pcs Extension arm1 pcs Gas outletsSurgical PendantAnesthesia PendantEndoscopy Pendant O2*1,Vac*1,Air*1O2*1,Vac*1,Air*1N2O*1,AGSS*1O2*1,Vac*1,Air*1CO2*1DIN StandardElectrical socket6pcs (220V 10 A)Universal Type   Other Configuration optionalRJ 45Quantity is optional according to hospital needVideo SocketQuantity is optional according to hospital needGrounding socketQuantity is optional according to hospital need Monitor bracketQuantity is optional according to hospital needElectrical socket and gas outlets u can choose different standards,quantity is optional according to hospital need Company Information: Shanghai Zhenghua Medical Equipment Co.,Ltd established in 1993,is a professional manufacturer engaged in the research,development,production,sale and service of medical pendants,operation light,Operation table and MGPS system,Turnkey Operating Room project,cleaning system of operating room.In 2013,it established another company"Shanghai Etar Mechanical And Electrical Technology Co.,ltd",which specifically exports shanghai zhenghua's all products to overseas.FAQ:1. How about the lead time (OT Light / Pendant / Table)?1-5pcs:10 working days 5-20pcs:20-30 working days  2. Can our private logo / label be printed on the packaging?Yes, your own private logo/ label can be printed on the packaging upon your legal authorization,we do OEM service for many years. 3. How can I get some samples?sample is available 4. What are the main products?Zhenghua mainly produce medical pendent, bed head unit, Led/Halogen Lamp,Endoscopy trolly,gasoutlets and other medical equipments product. 5. When do you Start?We are manufacture located in shanghai eatsblished on 1993 over 26 expriences about producing medical equipments.Our products have exported to 120 countries up to now./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
