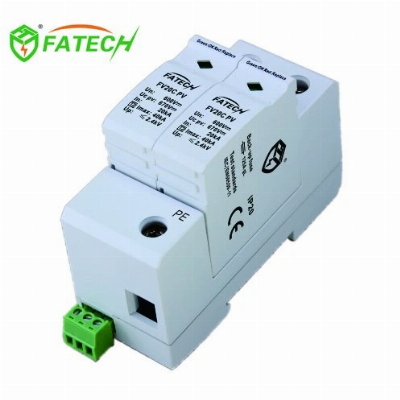

Modular 40ka 48V DC Surge Protector

DC surge protection device FV20C/2-100PV is for photovoltaic (PV) solar protection 48VDC, Imax 40kA, 2poles.1. DC surge protection device for photovoltaic system Characteristic FV20C/2-48PV-PV surge protector specially used for solar photovoltaic system 48Vdc.  -The core parts are metal oxide vristor components with high discharge capacity.  -With Reliable control thanks to Thermo Dynamic Control disconnector.  -Without remote signaling contact for control device.  -Fault indication via red mark in the inspection window. 2. Electrical parameters of surge arrester  FV20C/2-48PVModel. No.FV20C/2-48PVSSPD protection conforms to EN50539-11/IEC61643-31Type 2SPD installation type conforms to EN50539-11/IEC61643-31Class IIProtection level conforms to DIN VDE0675-6CType of NetworkPhotovoltaic systems DC sideProtection mode(+/-)-PE , (-/+)-PENominal Voltage   UN 48 VdcMaximum continuous operating voltage for PV application   UCPV75 VdcContinuous operating current   ICPV1000 MΩResponse time   tA≤25 nsRemote control contactYESDisconnection indicatorMechanical indicator(Green: OK, Red: Replace)I/O ConnectionsBy screw terminal:10-35mm2By connection busInstallation locationInsideMounting typeSymmetrical rail (EN50022/DIN46277-3)ColorGrayDegree of protectionIP20Housing materialUL94V-0Ambient temperature-40°C ~+80°CAltitude≤2000 m (amsl (above mean sea level))Permissible humidity30%~90%3. Dimension4. Installation of surge arrester FV20C/2-100PV  Company Information      FATECH ELECTRONIC CO., LTD., is located in Guangdong Provincial New Light Production Base, CHINA, which is a professional manufacturer on R&D and producing on lightning and surge protection devices. Our company gathered all kinds of high-skillled personnels, including authority technical experts and professionals, and excellent technicians with more than 10 years experience. Wide range of lighting & surge protection products assured you a one stop shopping location for all your need and professional technical support,warmly welcome your visit and audit our factory.Workshop      Fatech has gathered authority technical experts and professionals as technical advisers and 50% production workers have more than 5 years working experience of surge protection products. Also we established an advanced independent test center with variety of testing equipmet, including reliability testing laboratory, environmental aging testing laboratory, release testing laboratory.Exhibition            FATECH have strong sales team, our surge protection device are sold to many countries around the world. mainly in Europe, Asia, Latin-America, and Middle East. We would like to cooperate with global customers and help you success in your market.Certifications        FATECH Electronic (FOSHAN) CO., LTD. supplies five-years warranty on surge protective devices, and supply maintenance services in lifetime.Products are certified with TUV, CE; UL pending, 90% material are UL approved.  FAQ: 1. Q: Could l know which advantages do you have please? A: Independent test center, TUV, Patent certifications; 15 years export experience in the overseas market; good technical service and support. 2. Q: Are you a lightning surge protectors factory or trading company?A:  We area manufacturer which is ISO 9001-2008 quality system on R&D, production and sales of surge arrester. 3. Q: Warranty and return? A:  We supply five-years warranty on surge protective devices and own the best after-sale service team, if anyproblem happens, our team will do our best to solve it for you. 4. Q: What's the delievery time? A:  It is usually about 15 days after receiving the payment and confirmed the order, but specific time shouldbe based on the order quantity.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
