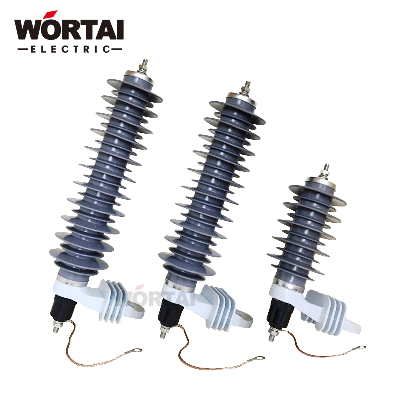

Polymeric Metal Oxide Surge Arrester 3 - 36kv Full Series for Distribution

Production DescriptionM.V. Surge Arresters are used to protect transformers and other equipments in station and distribution systems against the damageby atmospheric (especially lightning effects) and operational conditions.Metal oxides surge arresters without gaps are designed toprevent probable damages in the case of typical surges in energy systems while it has no negative effect on energy systems innormal operation voltage. This special feature of gapless arresters originating from non-linear characteristics of metal-oxidevaristors between voltage and current scales. The non-linear feature is much higher compared to SiC surge arresters. *Standard: IEC60099-4 / IEEE C62.11*Type: ZnO, Gapless, Polymer housing, use for distribution overhead line * Rated Voltage(Ur): 3kV - 36kV* Nominal Discharge Current(In): 5kA or 10kA* Long Duration Current Impulse: 150A or 250A* High Current Impulse(Imax): 65kA or 100kA* Pressure relief capability: 16kA or 20kA* Creepage distance: ≥31mm/kV  Product ParamentersHeavy duty -10kA SerieArrestertypeRated voltage Ur (kVMax. continues operating voltage   Residual Voltage (kV)as per IECas per ANSI/IEEE1/10 μs Steep current impuse1/10 μs Steep current impuse30/60μs Switching current impulseUc (kV)MCOV (kV)YH10W-3/932.42.5511.398.9YH10W-6/1864.85.120.51816YH10W-9/2797.27.65312724YH10W-10/30108.09.334.13026.6YH10W-11/33118.89.35383329YH10W-12/36129.610.241.53630.6YH10W-15/451512.012.7524538.3YH10W-18/541814.415.3625446YH10W-21/632116.81772.56353.5YH10W-24/722419.219.582.57261.2YH10W-27/812721.62293.28169YH10W-30/903024.024.41049080YH10W-33/993326.428.0113.89984.2YH10W-36/1083628.829.0124.210891.8Normal duty - 5kA SeriesArrester typeRated voltage Ur (kVMax. continues operating voltageResidual Voltage (kV)as per IECas per ANSI/IEEE1/10 μs Steep current impuse1/10 μs Steep current impuse30/60μs Switching current impulseUc (kV)MCOV (kV)YH5W-3/932.42.5511.398.9YH5W-6/1864.85.120.51816YH5W-9/2797.27.65312724YH5W-10/30108.09.334.13026.6YH5W-11/33118.89.35383329YH5W-12/36129.610.241.53630.6YH5W-15/451512.012.7524538.3YH5W-18/541814.415.3625446YH5W-21/632116.81772.56353.5YH5W-24/722419.219.582.57261.2YH5W-27/812721.62293.28169YH5W-30/903024.024.41049080YH5W-33/993326.428.0113.89984.2YH5W-36/1083628.829.0124.210891.8  Test and Inspection EquipmentsPacking and DeliveryCertificationsWORTAI AlbumWhy Choose WORTAI* More than 20 years manufacturing experience in electric power industry* Top quality products, ISO9001, ISO14001, KEMA, CNAS certificates*Custom tailored products, OEM & ODM are welcome* Challenging prices for giving customers the greatest benefits* Fast response time, we promise to reply customer's email within 24 hours* Attractive lead times, plenty of equipments and workers to ensure the delivery on time* Top skilled technicians*FlexibilityWORTAI have been sold to over 20 countries and regions, spread all over Asia, Africa, Middle & South America, Middle East and Europe, we also has done OEM service for some world famous brands.Choosing WORTAI meansbeing one step ahead of the general development. We look forward to a closer relationship and mutually beneficial cooperation withany prospective customers in the near future. WORTAI will work with you shoulder-to-shoulder to satisfy your needs.With competitive price, good quality and best service, WORTAI will be your most wise choice. Together we're winners! Let's do it right now!/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
