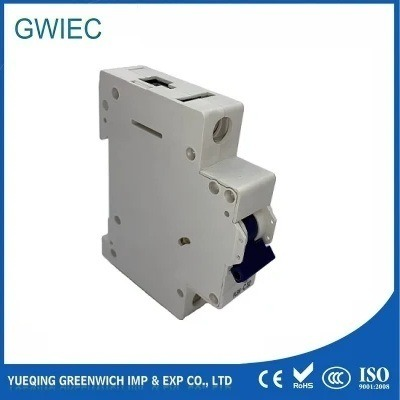

Application:PLSM series circuti breaker is the new product developed by our factory.The breaking capacity can pass 10kA,it is used in the circuit of distribution systems for building and similar use,for untrained person use,no need maintained.This series products applied the laterest scientific research achievement and the newly contrivance thinking;has many patent technical.This product conforms to IEC 60898 and GB10963-1999 standards. New: A)The power input from underside to upside,conform to the path of power line or the wire of distribution box,make the wire shorter,so it can reduce the cost of wire. B)The super ARC chamber and special constructure of contact block,can extinguish the electrical ARC very quickly,suitable to make the product can pass 10kA breaking capcity easily. C)The handle in the upside,touch feeling is comfortable and safety during on/off actions. D)There is one special tage on the upside of the front of the product.It can by used in making of numbering by oil pencil. Feature:All the terminal connecter is multi-function if tighten the screw,upside can connect with copper connector,underside can connect with round wire seperately.And also can combine with the copper connect(flat)and round wire at the same tume for both sides.It has the visible contact block breaking indicate equipment,can be used in wire isolating Full-scale: A)The operation chacacteristic can be made as B.C.D style.It can meet different demands. B)Combined with earth leakage protect equipment,can be used as earth leakage circuit breaker. C)Combined with isolated tripping instrument or voltage shortage tripping instrument,it can realize far distance control and voltage shortage protection. D)Combined with contact block or warning instrument and other accessories,will be used in the power supply systems of morden intelligent architecture. Miniature Circuit Breaker Specification:Pole(P)1,2,3,4Case grade rated current(A)63Power factor0.4-0.5/0.65-0.7Electric life(times)25000Rated current(A)6-63Rated voltage(V)230/400Rated breaking capacity(A)10000 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
Related products about MCB Overcurrent Protection 6A 20A 25A 40A 32A Circuit Breaker Hot Sale
-
