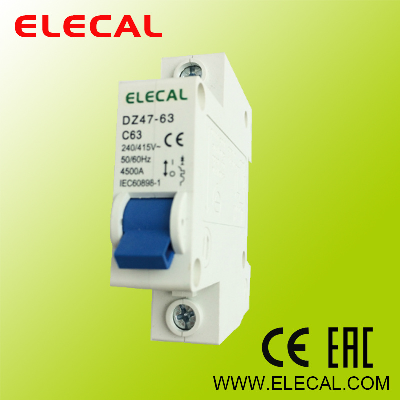

DZ47-63 MINI CIRCUIT BREAKER Electrical Features Rated current In :1,2,3,4,6,10,16,20,25,32,40,50,63A Poles:1P, 1P+N, 2P, 3P, 3P+N,4P Rated voltage Ue:240/415V Insulation voltage Ui :500V Rated frequency:50/60Hz Rated breaking capacity :6000/10000A Energy limiting class:3 Rated impulse withstand voltage(1.2/50) Uimp:4000V Dielectric test voltage at ind. Freq. for 1 min:2kV Pollution degree:2 Thermo-magnetic release characteristic: B,C,D Mechanical Features Electrical life:8,000 Mechanical life:20,000 Contact position indicator: Yes Protection degree:IP20 Reference temperature for setting of thermal element:30ºC Ambient temperature (with daily average≤35ºC): -5ºC...+40ºC Storage temperation: -25ºC...+70ºC Installation Terminal connection type: Cable/U-type busbar/Pin-type busbar Terminal size top/bottom for cable: 25mm2 18-3AWG Terminal size top/bottom for busbar: 25mm2 18-3AWG Tightening torque 2.0 N*m 22 In-Ibs. Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device Connection: From top and bottom Combination with accessories Auxiliary contact: Yes Shunt release: Yes Under voltage release: Yes Alarm contact: Yes /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
