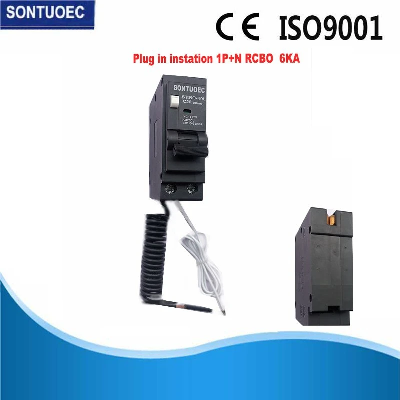

Plug in Instation Residual Current Circuit Breaker RCBO 16-40A/30mA

Product DescriptionFactory High Quality STRO-40L Plug In Instation Residual Current Circuit Breaker 1P+N RCBO with overload current protection and earth wire protection16-40A/30mA   Construction and Feature:Provides protection against earth fault / leakage current , short-circuit and overload .HIgh short-circuit capacityProvides complementary protection against direct contact by human body.Effectively protects electric equipment against insulating failure .Contact position indicationProvides protection against over-voltageProvides comprehensive protection to household and commercial distribution sysyems. Normal working & installment conditions:1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.2.Installment plance altitude: ≤2000m3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.4.Pollution degree: 2 class5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.7.Mounted Category: II,III class.8.Comply with Southern Market or Middle East Market.Technical data:Standard IEC61009  (Electronic type)Breaking Capacity4.5KA, 6KA Number of poles1P+N(1 module)Rated currents6,10,16, 20, 25, 32, 40ARated voltage110/220VACRated Tripping Current10mA,30mA, 100mA,300mAResidual current off time≤0.1sCharacteristicB ,CElectrical endurance10000Mechanical endurance20000Ambient temperature-25ºC~+45ºC Max. 95%humdityConnection terminalFexibe conductor 16mm²Rigid conductor 25mm²Type of terminalPlug-in  type Model A ,  AC   Competitive price Continuance Service and supportGood-after serviceQuality Reliability and Long Product Life. WENZHOU SANTUO ELECTRICAL CO,LTD.    is one of manufactories that specialize in manufacturing  Circuit Breaker,AC CONTACTOR, Thermal Relay and Magnetic Starter, Distribution Box, Voltage Regulator,Solid State Relay.... and is located in Liushi.Wenzhou.China Contact  usThanks for your reading.If any product meets your need.Welcome to send us an email or by Wechat and WhatsApp.We are sure your any information can be attentioned without any delay. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
