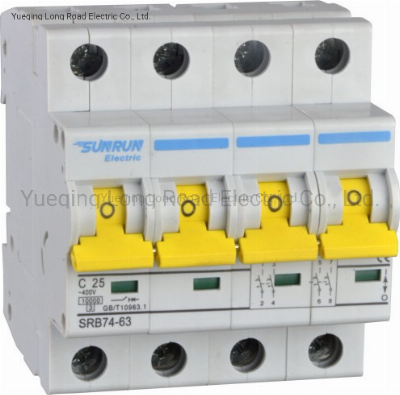

10ka Short-Circuit Breaking Capacity MCB

1.Functionprotection of circuits against short-circuit currents, protection of circuits against overload currents, switch,isolation,FTCQP circuit-breakers are used in domestic installation, as well as in commercial and industry electrical distribution systems.                  2.Standard   IEC/EN 60947-2Rated current InA1, 2, 3, 4, 6,10,16,20,25,32, 40, 50, 63Poles 1P,2P,3P,4PRated voltage UeV230/400~240/415Insulation voltage UiV500Rated frequency 50/60HzRated breaking capacityA10000Energy limiting class 3Rated impulse withstand voltage(1.2/50) UimpV6000Dielectric test voltage at ind. Freq. for 1 minkV2Pollution degree 2Power loss per pole Rated current (A)Max power loss per pole (W)1, 2, 3, 4, 5, 6, 10213, 16, 20, 25, 323.5 40, 50, 635Electrical life 4, 000Mechanical life 20, 000Contact position indicator YesProtection degreeºCºCIP20 30-5...+40(Special application please refer to P14for temperature compensation correction)Reference temperature for settingof thermal elementAmbient temperature (withdaily average≤35ºC)Storage temperationºC-25...+70Terminal connection type Cable/U-type busbar/Pin-type busbarTerminal size top/bottom for cablemm225AWG18-4Terminal size top/bottom for busbarmm210AWG18-8Tightening torqueN·m2.5In-Ibs.22Mounting On DIN rail EN 60715 (35mm) by means of fast clip deviceConnection From top and bottomAuxiliary contact YesShunt release YesUnder voltage release YesAlarm contant Yes/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
